Huawei B850-5E4P

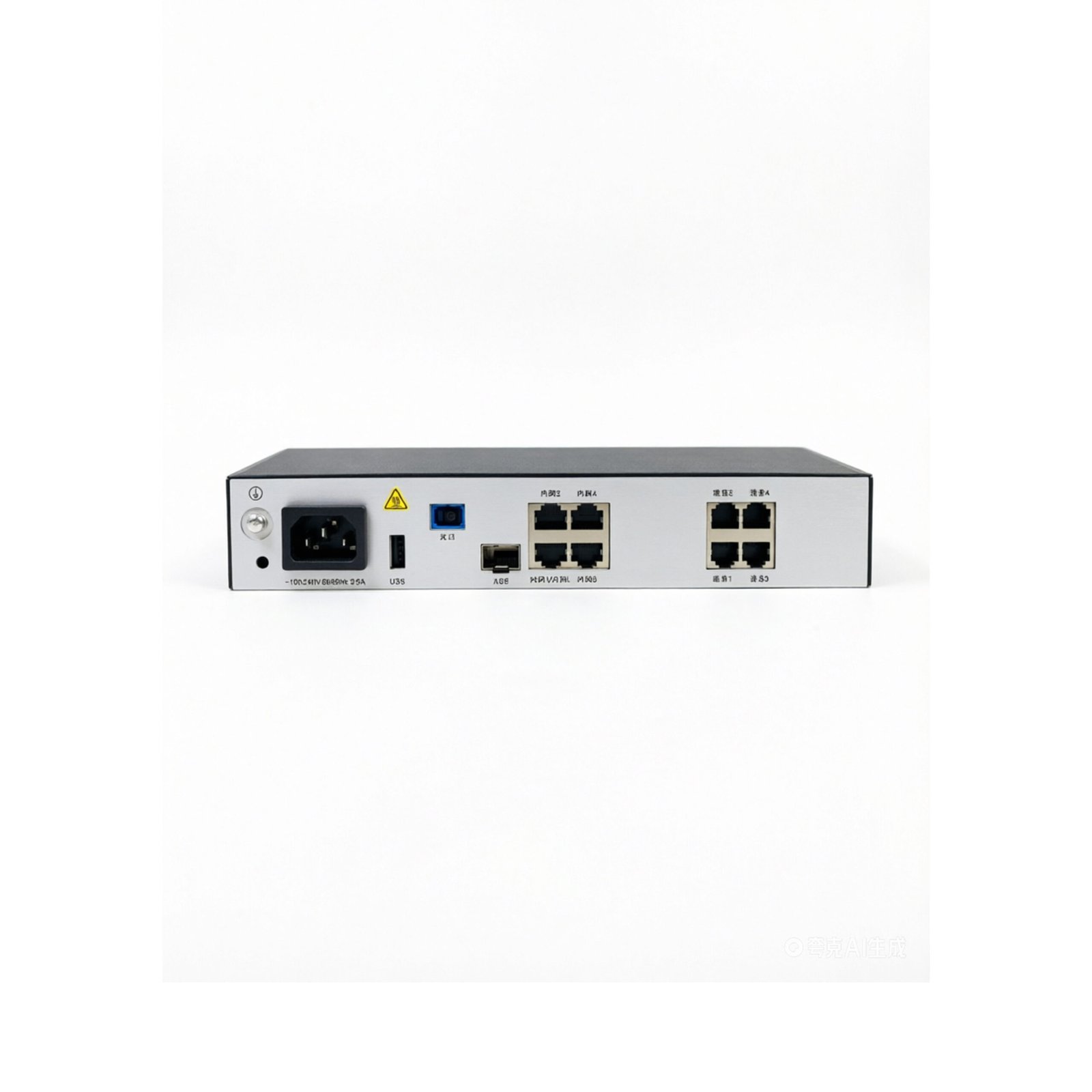

Huawei B850-5E4P XGPON with 10GE SFP front view
Huawei B850-5E4P XGPON with 10GE SFP rear panel ports

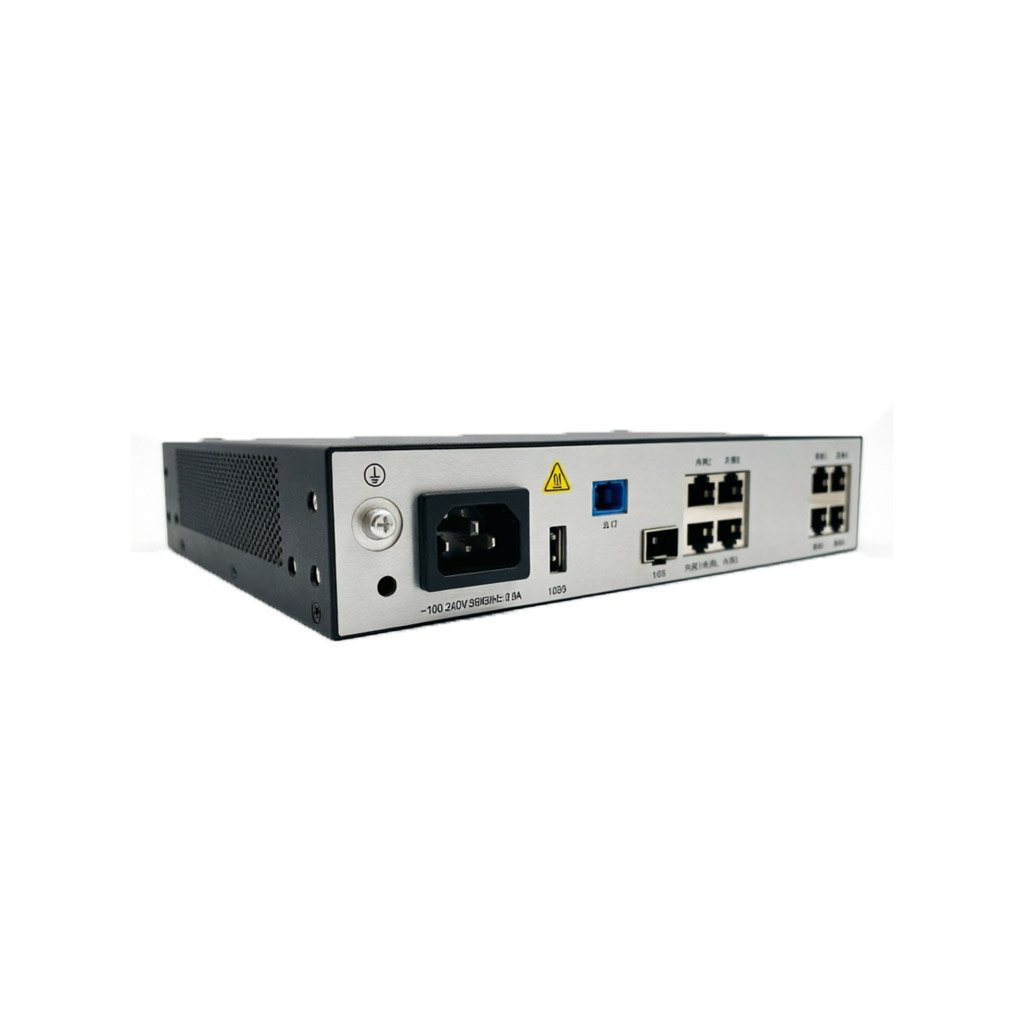

Huawei B850-5E4P XGPON with 10GE SFP rear ports

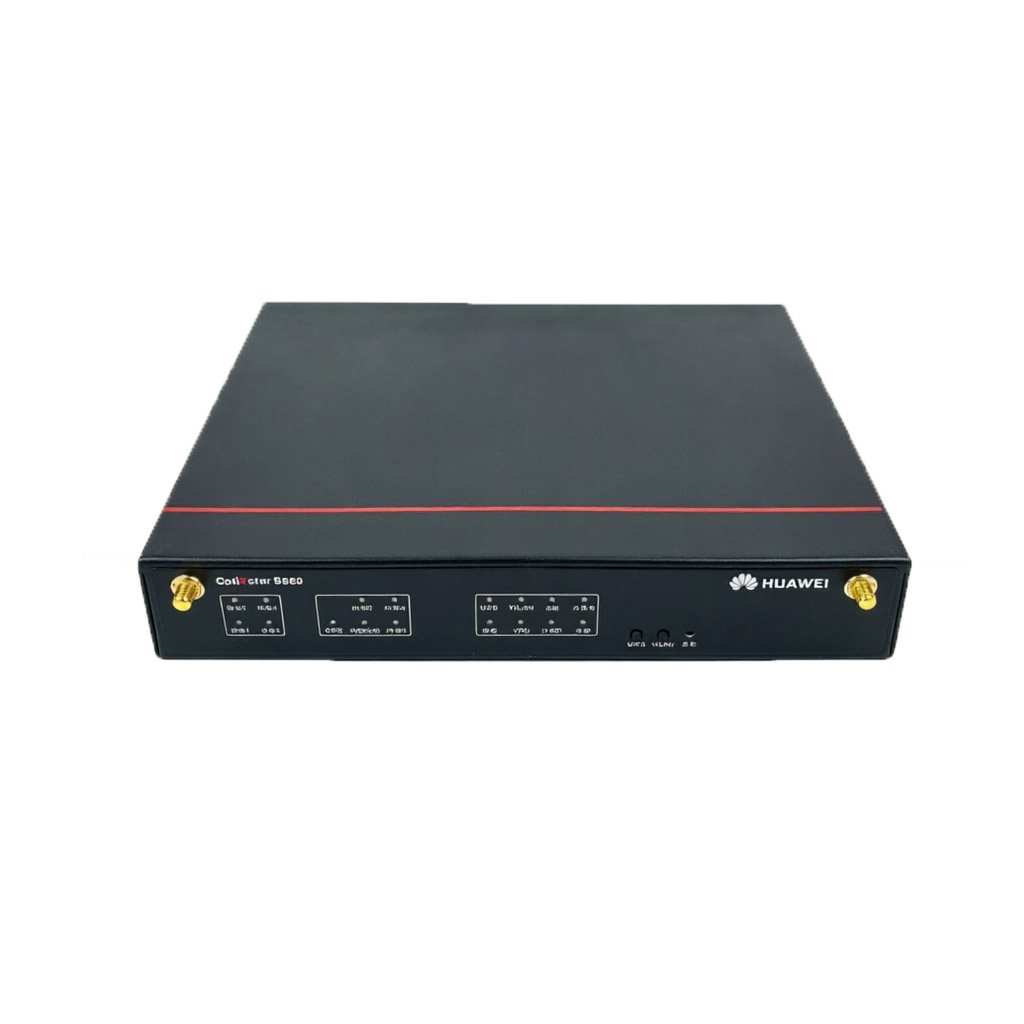

Huawei B850-5E4P XGPON with 10GE SFP side design

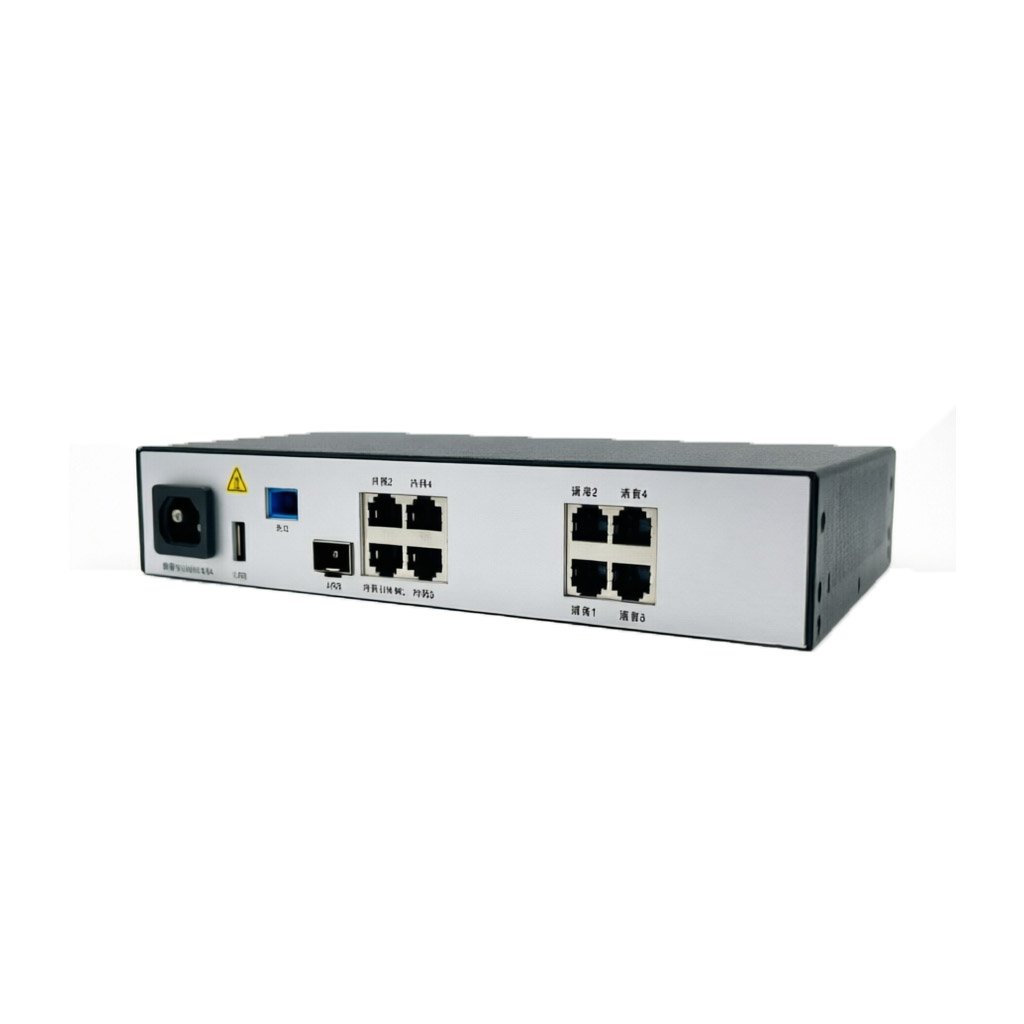

Huawei B850-5E4P XGPON with 10GE SFP side panel design

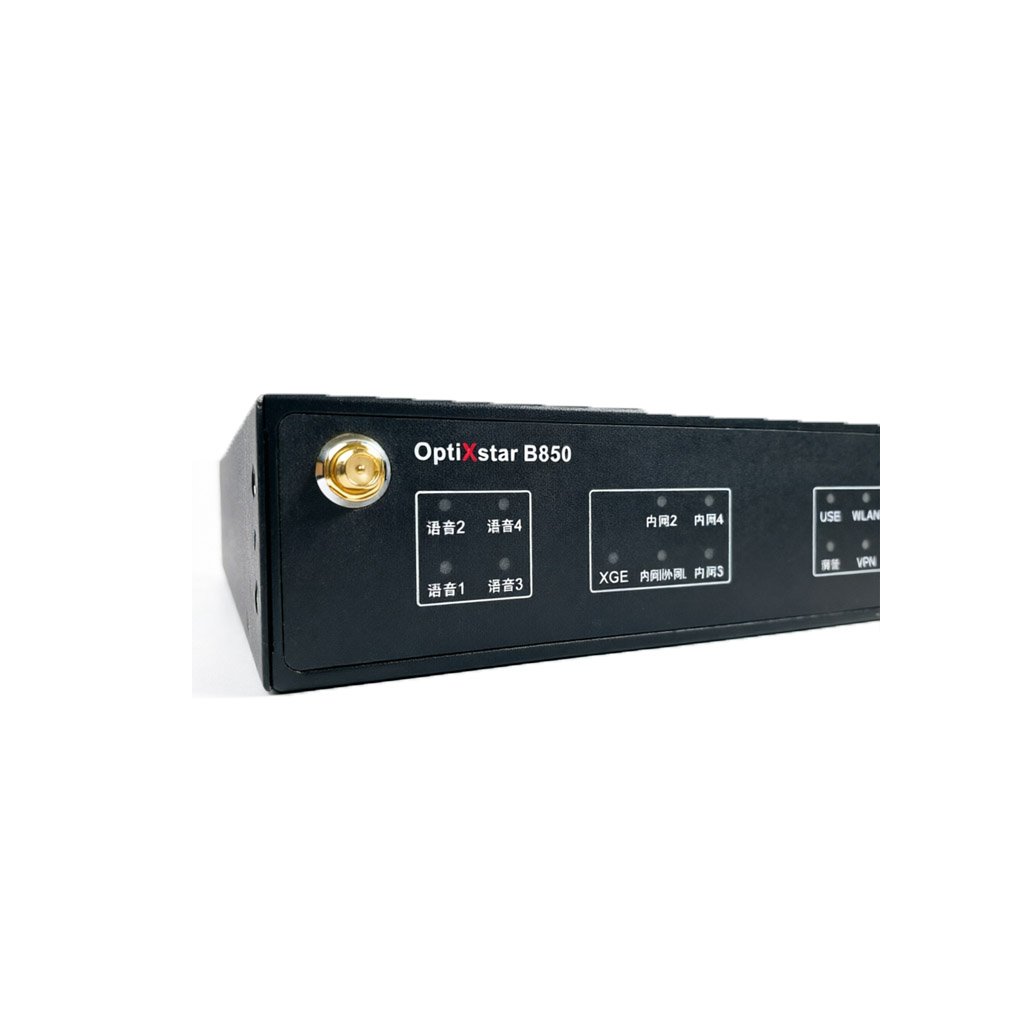

Huawei B850-5E4P XGPON with 10GE SFP slim side profile

Huawei B850-5E4P

Price range: $180.00 through $240.00

Huawei B850-5E4P | XG-PON (SFP+ Optical Module) | 4*GE + 1*10GE SFP（SFP ports support optical-to-electrical module.）+4*POTS+WIFI 5

✅ Includes a 12 Months warranty.
Add to wishlist
SKU: 2150085205 Categories: , , Tags: , , , , , Brand:

Description

Huawei B850-5E4P is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4*GE ports
and 1*10GE port to provide high-quality voice, data, and HD video services.

The Huawei OptiXstar B850 series products are gateway-type ONU devices designed for enterprise leased lines, enterprise campuses, or video backhaul scenarios. The B850 can provide VXLANThe IPSec cloud-access dedicated line also provides users with various services such as wireless office, voice communication, and high-definition video. When paired with the network management system, the B850 can enable remote fault diagnosis of devicesIt features functions such as fault diagnosis, rapid business activation, and automatic configuration.

It supports placement on a desktop, wall-mounting, or installation in a 19-inch cabinet or network box, meeting the placement needs of users in different scenarios.. It delivers symmetrical 10Gbps fiber connectivity via an SFP+ optical module, ensuring ultra-fast and reliable data transmission.It supports symmetrical 10Gbps transmission via an SFP+ optical module and offers flexible deployment with optional GPON, XG-PON, XGS-PON，and 10GEPON modules. Convert to the upstream line of the corresponding module, ensuring ultra-fast and reliable data transmission.

Product Highlights – Huawei B850-5E4P

  • 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.
  • Supports XGS-PON uplink, 2.5G high bandwidth access.
  • Features high reliability,type B dual-homing service protection.

Device Parameters – Huawei B850-5E4P

Dimensions (H x W x D)250mm×180mm×43.6mm (Without floor mat)
WeightAbout 1.8 Kg
NNIXGS-PON | XG-PON | 10G-EPON
UNI4 × GE + 1 × 10 GE(SFP)+4*POTS
NOTE: （SFP ports support optical-to-electrical module.）
Operating temperature-5°C to +45°C
Static powerconsum ption
  • 12 W
Maximum power consumption24 W
POTS (Voice) Port
  • Maximum REN: 4
  • G.711A/μ, G.729a/b, and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)
USB Port
  • 1 x USB 2.0 (storage sharing, printer services)
Surge protection specificationsGE: common mode 4 kV; differential mode 0.5 kV.
AC power: common mode 6 kV; differential mode 6 kV
Installation modeSupport indoor desktop installation, wall mounting, or network box installation.

Interface Parameters

XG-PON (XGS-PON Optional )
  • Class N1/N2
  • Receiver sensitivity: -28 dBm
  • Wavelengths: US 1260-1280 nm, DS 1575-1580 nm
  • Wavelength blocking filter (WBF)
  • Flexible mapping between GEM Port and T-CONT
  • SN/Password/SN+Password/Bi-directional authentication based on OMCI
  • Upstream and downstream FEC
  • SR-DBA and NSR-DBA
  • 10 Gbit/s upstream, 10 Gbit/s downstream (symmetrical)
GE/10GE SFP+
  • Supports insertion of  SFP+ optical modules and supports an interface rate of 10000Mbit/s
  • Port type: RJ-45
  • GE ports: Auto 10/100/1000 Mbit/s
  • Auto-MDI/MDIX
  • Configuration of the number of MAC addresses learned
  • VLAN transparent transmission/VLAN filtering

Product Functions & Features – Huawei B850-5E4P

Automatic Service Provisioning
  • Zero-touch provisioning (ZTP)
  • Remote configuration via TR-069/OMCI
Smart O&M
  • XML/Web UI
  • Rogue ONT detection and self-regulation
  • Ring network detection/PPPoE/DHCP simulation testing
Multicast
  • IGMP v2/v3 snooping
  • IGMP proxy
  • MLDv1/MLDv2 snooping
  • Fast leave / Immediate leave
Layer 3 features
  • Default/Static/Policy/Service routes
  • VLAN binding
  • ALG/UPnP/ARP
  • DDNS/DNS/NAPT
  • PPPoE/Static IP/DHCP (Client/Server/Relay)
  • Port mapping/Port trigger
  • IPv6 (Dual stack, Prefix delegation)
Security
  • 802.1x authentication
  • IPv6/IPv4 firewalls
  • Filtering based on MAC/IP/URL
  • DoS/ARP anti-attacks
  • Static MAC address binding
  • Device access control
  • Web session number restriction
QoS
  • Ethernet port rate limitation
  • 802.1p priority
  • SP/WRR/SP+WRR
Layer 2 Management
  • Spanning Tree Protocol (STP/RSTP/MSTP)
  • Link Aggregation (LACP/Static)
  • Loopback detection
MTU & Jumbo Frame
  • MTU: A maximum of 2000 MTUs are supported.
  • Jumbo frame: A maximum of 9600 frames are supported.
Common O&M
  • Authentication exemption
  • XML/OMCI/TR069
  • XML/Web UI
huawei-V271E XG-PON with WIFI 7 front view
huawei-V271E XG-PON with WIFI 7

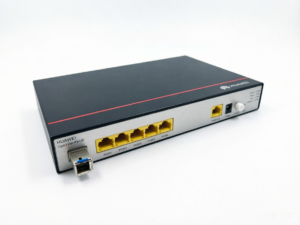

Huawei P812E XGS PON with front view
Huawei P812E XGS PON with POE+

OptiXstar V152 Front side

OptiXstar V271-20 is This product FTTR

This device supports advanced FTTO solutions based on GPON technology. Learn more about Optical Network Terminals.


* Specifications are based on the Huawei B850-5E4P datasheet. Actual performance may vary depending on network conditions. Supports XGS-PON symmetrical 10G, providing high-speed data transmission, stable connectivity, and reliable performance for FTTH broadband and fiber access solutions.

Additional information

NNI

XG-PON, 10G-EPON, XGS-PON

UNI

4*GE + 1*10GE SFP（Supports insertion of SFP+ optical modules and supports an interface rate of 10000Mbit/s.）

Dimensions (H x W x D)

250mm×180mm×43.6mm(Without floor mat)

Weight

< 1.8 Kg

Optical connector

NNI: SC

Power adapter input

100 V to 240 V AC, 50/60 Hz

Video

Video

FW Screenshot

FW Screenshot
