Huawei HN8245Q

Sale!

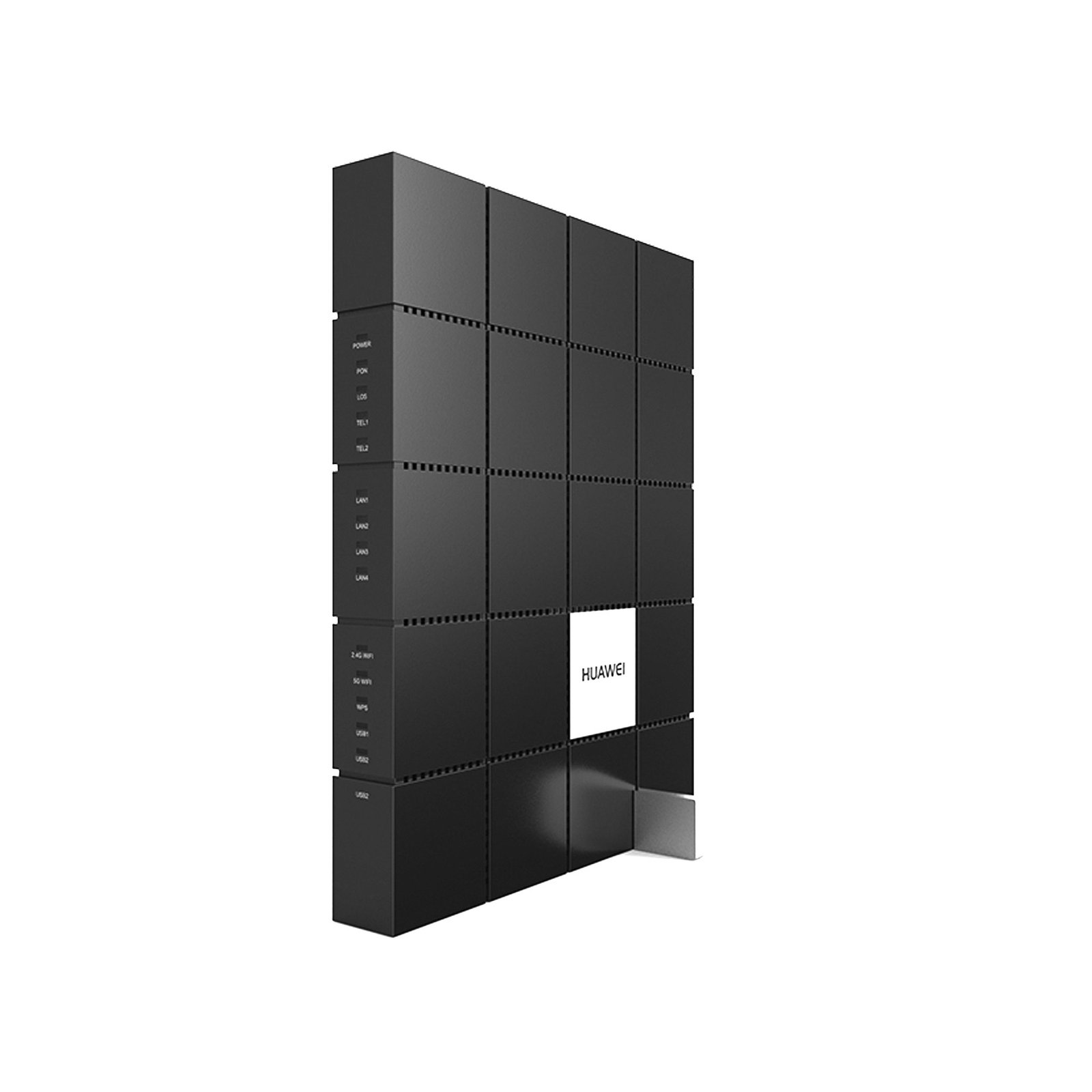

Huawei HN8245Q XGPON with WIFI 5 front view
Huawei HN8245Q XGPON with WIFI 5 side panel design

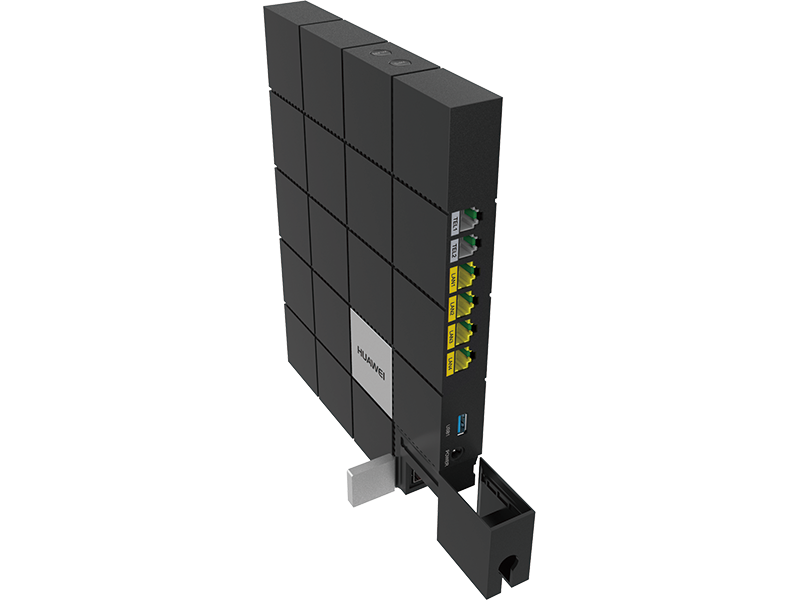

Huawei HN8245Q XGPON with WIFI 5 side design

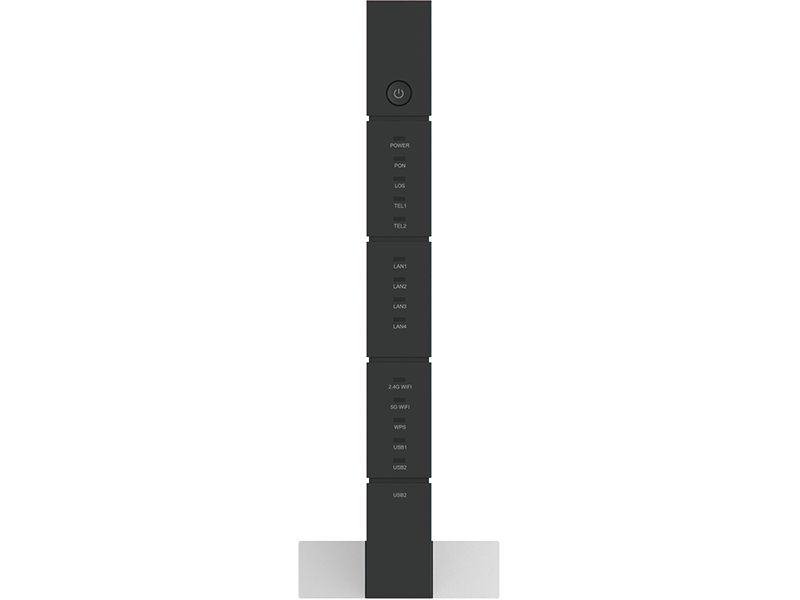

Huawei HN8245Q XGPON with WIFI 5 slim side profile

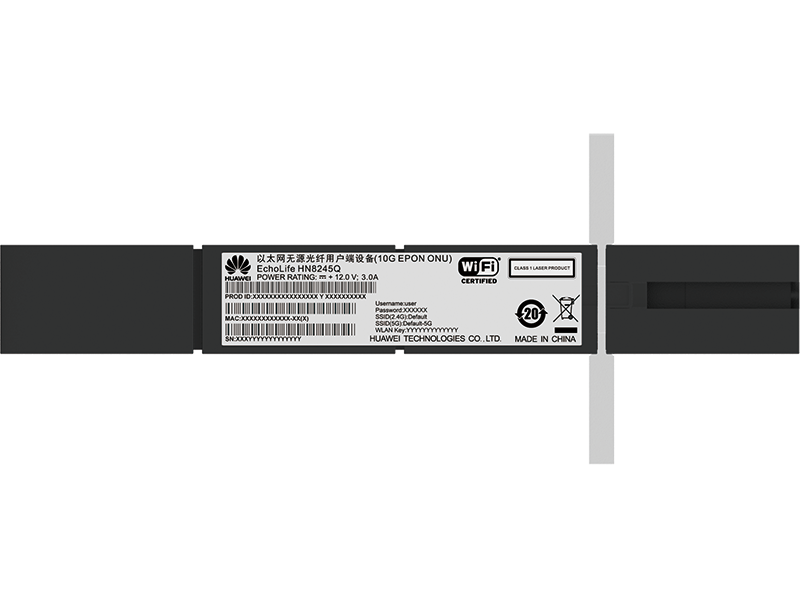

Huawei HN8245Q XGPON with WIFI 5 rear view

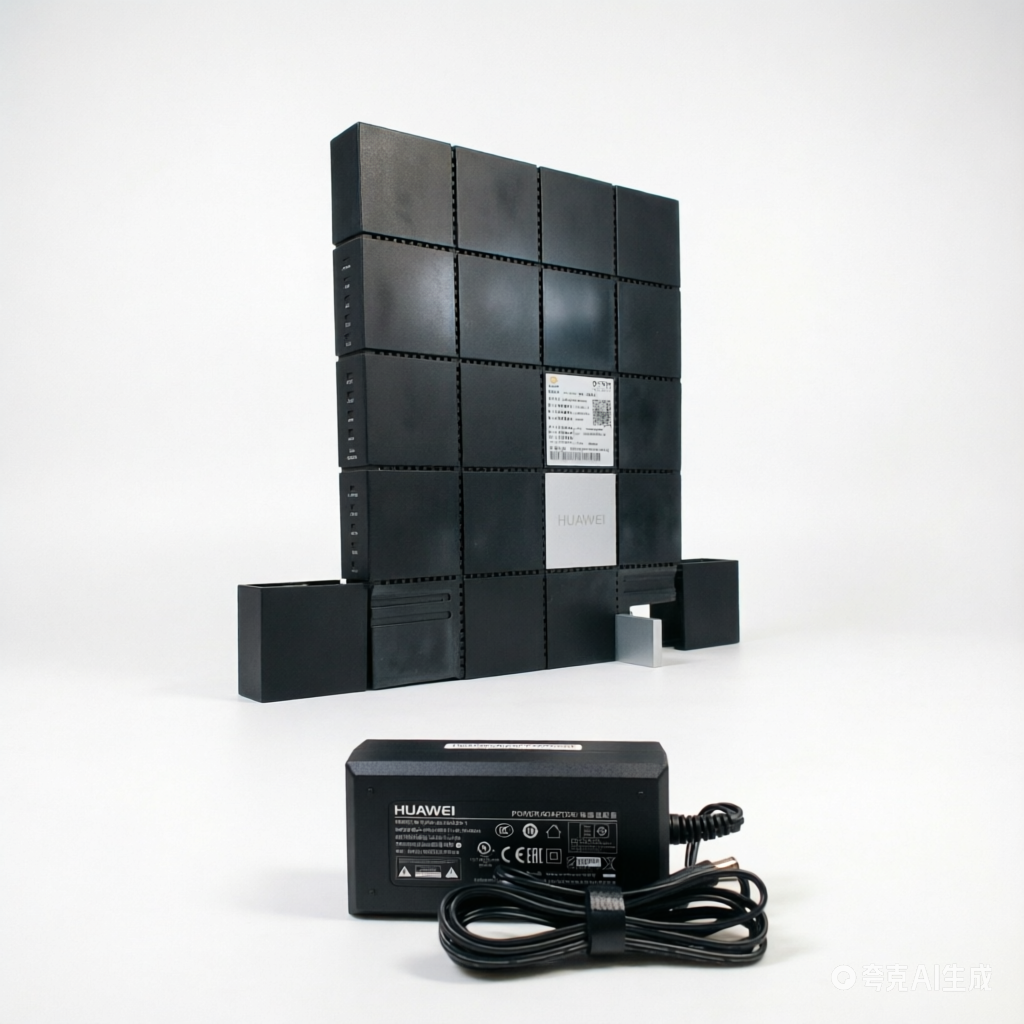

Huawei HN8245Q XGPON with WIFI 5 ONT housing illustration

Huawei HN8245Q

Price range: $75.00 through $130.00

Huawei HN8245Q | XG-PON (SFP+ Optical Module) | 4*GE + 2USB+ 2.4G & 5G Wi-Fi 5

✅ Includes a 12 Months warranty.
Add to wishlist
SKU: 2150085003 Categories: , , , Tags: , , , , Brand:

Description

The Huawei HN8245Q is a Routing-type Optical Network Terminal (ONT) designed for high-speed fiber-optic broadband access.It is a key component of Huawei’s all-optical access solution, providing a robust platform for delivering high-bandwidth services to residential and business customers.High-Speed Connectivity: Utilizes XG-PON technology to support ultra-broadband access with high-performance data forwarding capabilities.Versatile Interfaces: Equipped with a comprehensive set of ports to support multiple services simultaneously:Optional GPON, XGS-PON, 10GEPON modules.Convert to the upstream line of the corresponding module，ensuring ultra-fast and reliable data transmission.It with EU Standard Adapter，English Documents.

Device Parameters – Huawei HN8245Q

Dimensions (W x D x H)238 mm x 190 mm x 26 mm
Weight (without power adapter)< 1000 g
Power supply11-14 V DC, 3.0 A
Maximum power consumption≤ 34 W
Operating temperature0°C ~ +40°C
Operating humidity5%–95% RH, non-condensing
Indicator
  • POWER/PON/LOS/LAN/4*LAN/2.4G Wi-Fi/5G Wi-Fi/WPS/USB

Interface Parameters

XG-PON (XGS-PON Optional )
  • Class N1/N2a
  •  Receiver sensitivity: -28dBm
  •  Wavelengths: US 1260 – 1280 nm, DS 1575-1580 nm
  •  Wavelength blocking filter (WBF)
  •  Flexible mapping between GEM Port and TCONT
  •  SN/Password/SN+Password/Bi-directional authentication based on OMCI
  •  Bi-directional FEC
  •  SR-DBA and NSR-DBA
  •  2.5G bps uplink, 10G bps downlink
Wi-Fi (IEEE 802.11ax)
  •  IEEE 802.11 b/g/n(2.4G)
  •  IEEE 802.11 a/n/ac(5G)
  •  3 × 3 MIMO (2.4G/5G)
  •  Antenna gain: 2 dBi
  •  WMM
  •  Multiple SSIDs
  •  WPS
  •  2.4G/5G concurrent
  •  Air interface rate: 450 Mbit/s (2.4G); 1300 Mbit/s(5G)
Ethernet port
  • 4x Gigabit Ethernet ports (10/100/1000 Mbps auto-adaptation)
  • VLAN tagging / QinQ / MAC address learning
POTS port
  • 2x RJ11, SIP/H.248 protocol
  • G.711A/μ, G.729a/b, G.722 codec
  • T.30/T.38 fax, DTMF, emergency call support
USB port
  • 2x USB 2.0 ports

Product Functions & Features – Huawei HN8245Q

Smart interconnection
  • Smart Wi-Fi coverage
  • Any port any service
  • Parental control
Smart service
  • Smart Wi-Fi sharing: Portal/802.1x authentication
  • SoftGRE-based sharing
Smart O&M
  • IPTV video quality diagnosis
  • Variable-length OMCI messages
  • Active/Passive rogue ONT detection and isolation
  • PPPoE/DHCP simulation testing
  • Wi-Fi emulation (WLAN simulation)
Layer 3 features
  • PPPoE/Static IP/DHCP
  • NAT/NAPT
  • Port forwarding
  • ALG, UPnP
  • DDNS/DNS server/DNS client
  • IPv6/IPv4 dual stack, and DS-Lite
  • Static/Default routes
  • Multiple services on one WAN port
Multicast
  • IGMP v2/v3 proxy/snooping
  • MLD v1/v2 snooping
  • Multicast services through Wi-Fi
QoS & Security
  • QoS: Ethernet port rate limitation, 802.1p priority, SP/WRR
  • Security: SPI firewall, Anti-DoS attack, Filtering based on MAC/IP
Common O&M
  • OMCI/Web UI/TR069
  • Dual-system software backup and rollback
Power saving
  • COC V5
  • Scheduled Wi-Fi shutdown
Advanced Smart Features
  • Flexible mapping between GEM ports and T-CONTs
  • Rogue ONT automatic isolation from OLT
  • NCE cloud management – visualized home network
  • One-click diagnosis, Wi-Fi optimization



huawei-V271E XG-PON with WIFI 7 front view
huawei-V271E XG-PON with WIFI 7

OptiXstar V152 Front side

OptiXstar V271-20 is XG-PON with WIFI 7

This device supports advanced FTTH solutions based on GPON technology. Learn more about Optical Network Terminals.


* Specifications are based on the Huawei HN8245Q datasheet. Actual performance may vary depending on network conditions. Designed to support XGPON fiber optic networks, providing high-speed data transmission, stable connectivity, and reliable performance for FTTH broadband and fiber access solutions.

Additional information

NNI

GPON, XGPON, 10GEPON, XGS-PON

UNI

4*GE + 1*10GE + 2USB+ 2.4G & 5G Wi-Fi 5

Dimensions (H x W x D)

238 mm x 190 mm x 26 mm(Without the base)

Weight

< 1000 g

Optical connector

NNI: SC （SFP+ Optical Module）

System power supply

12 V DC, 3.0 A

Power adapter input

100 V to 240 V AC, 50/60 Hz
