Description
The Huawei P613E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 8*GE ports that there are 4 GE ports support PoE/PoE+.These ports provide high-quality voice, data, and HD video services.It with EU Standard Adapter，English Documents.

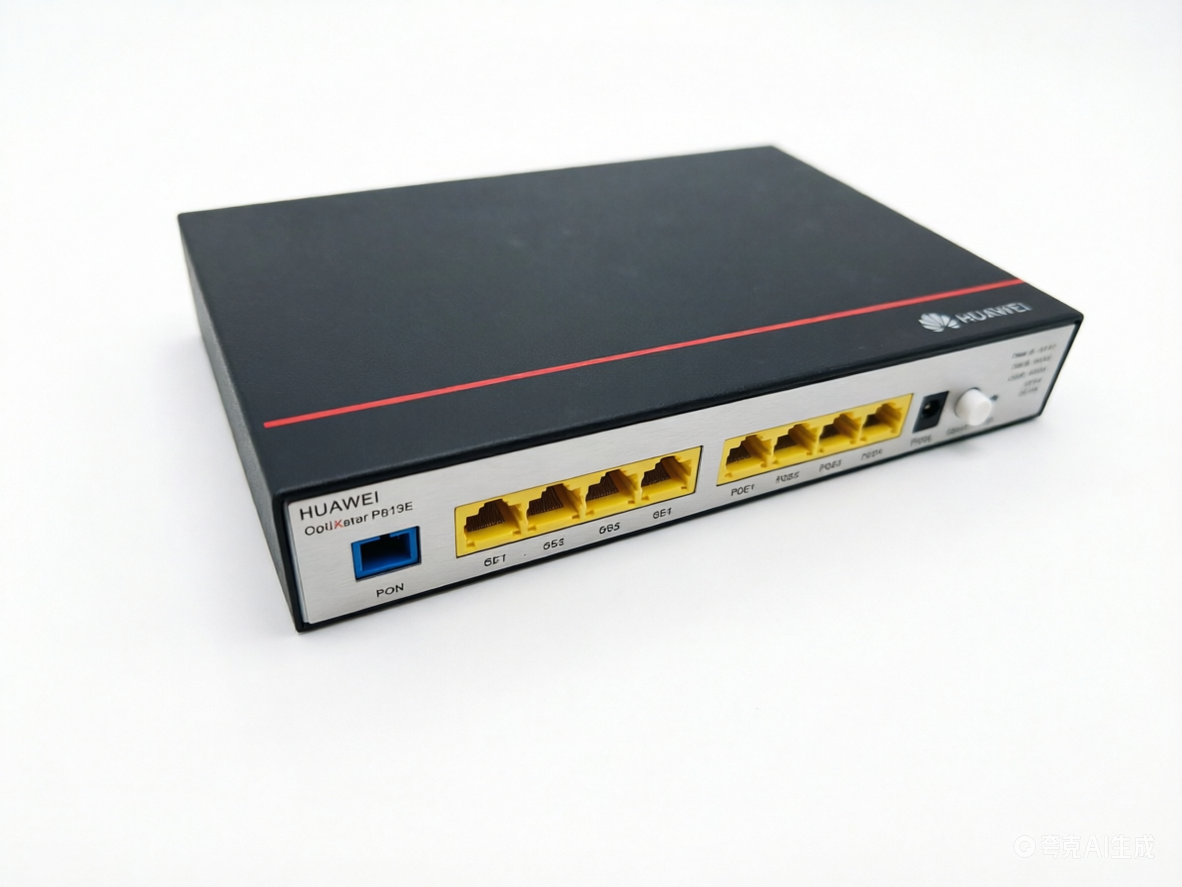

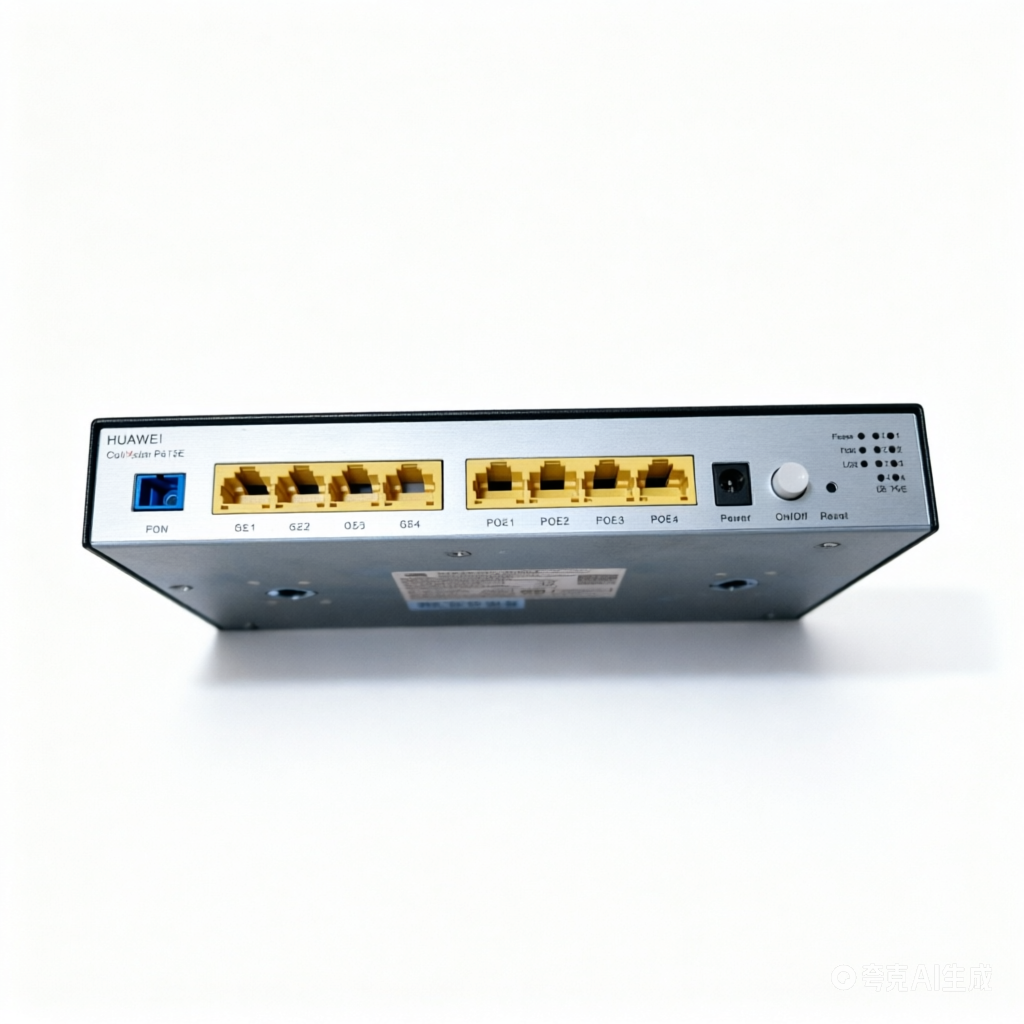

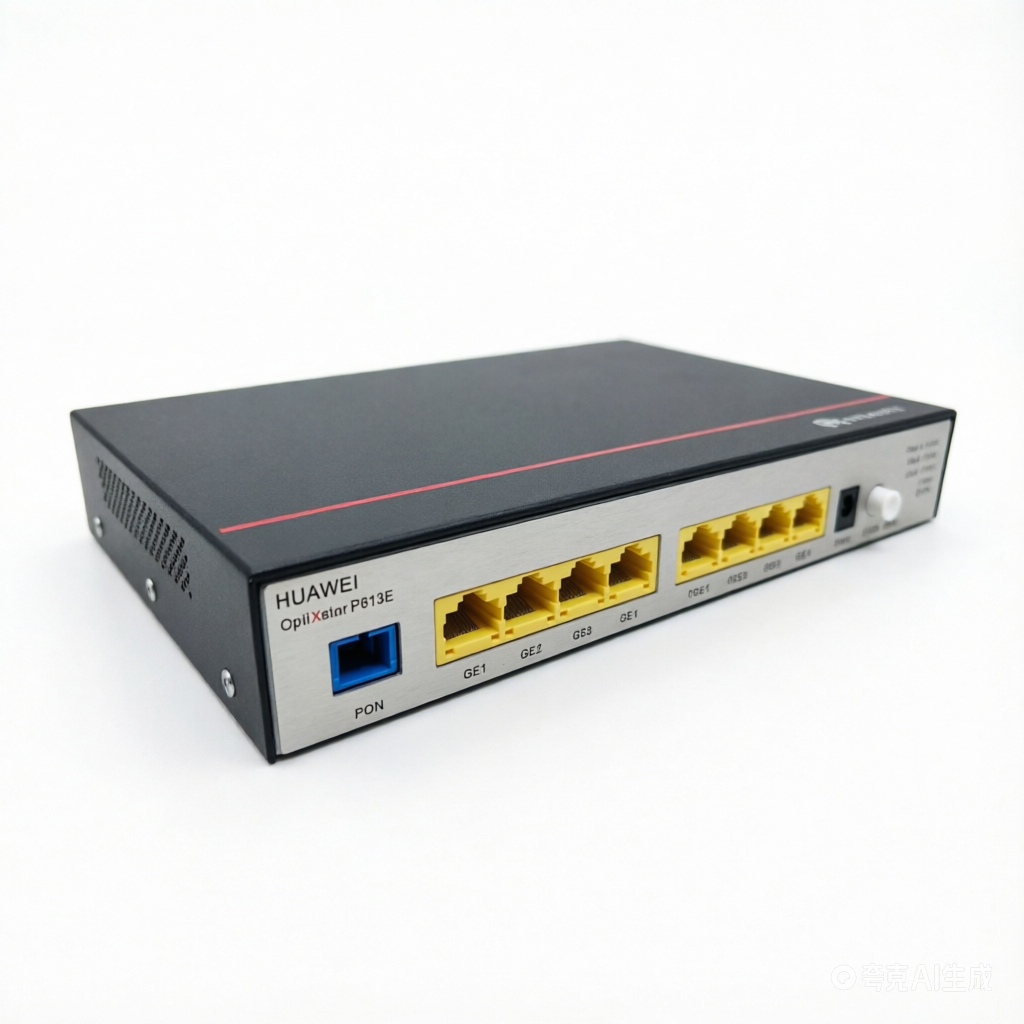

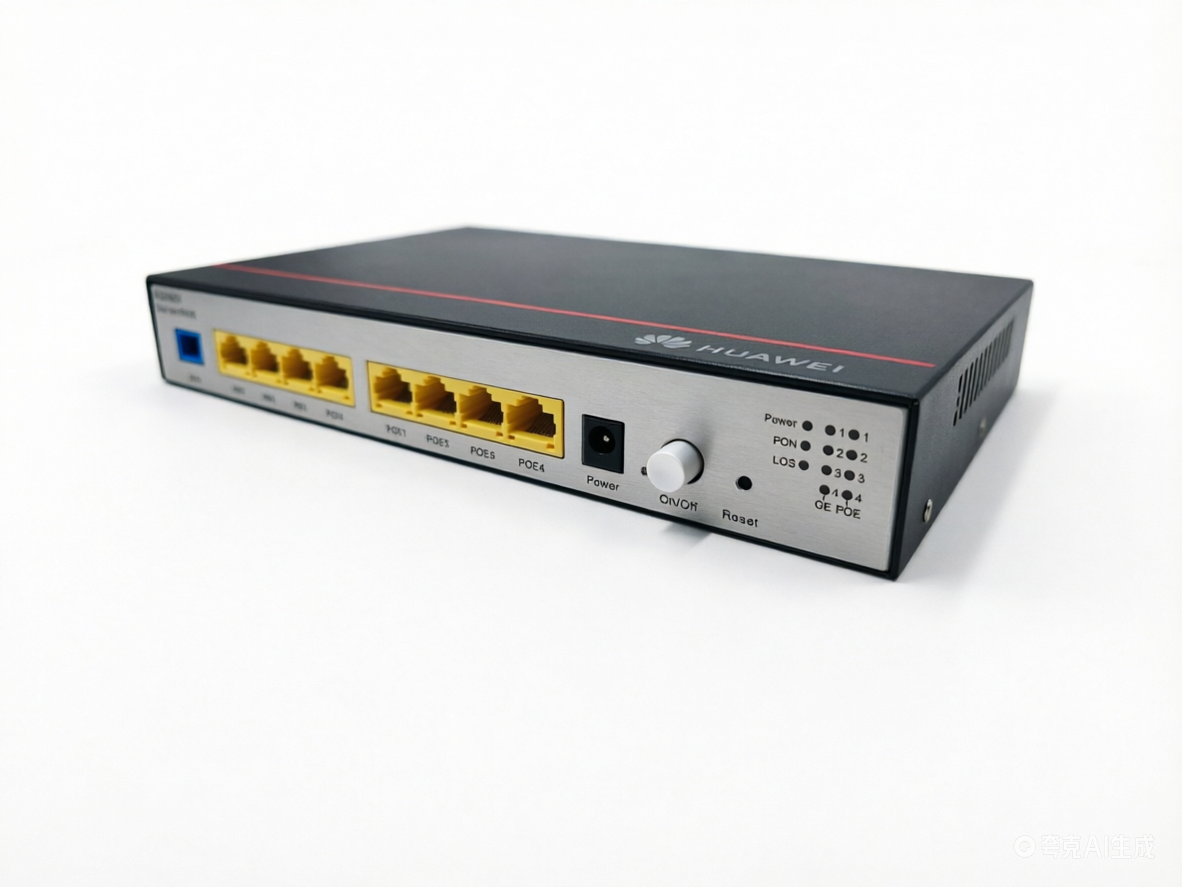

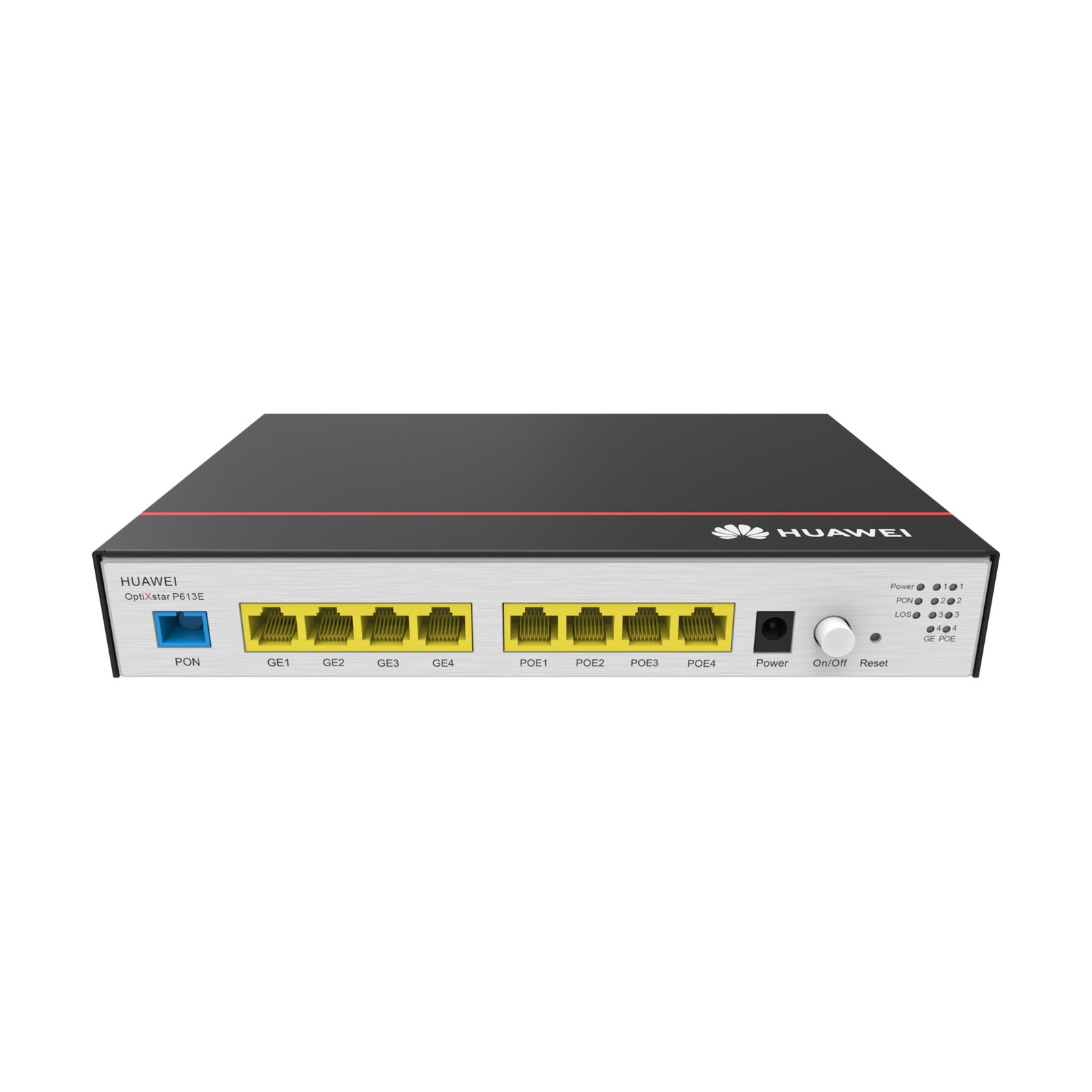

The Huawei OptiXstar P613E is a high-performance GPON Optical Network Unit (ONU) designed for enterprise and advanced
home networking environments. It delivers symmetrical 2.5Gbps fiber connectivity via an SFP+ optical module, ensuring ultra-fast
and reliable data transmission.
Product Highlights – Huawei P613E
- 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.
- The PoE/PoE+ function supports flexible power supply.
- Features high reliability, type B dual-homing service protection.
Device Parameters – Huawei P613E ONT
| Dimensions (H x W x D) | 220 mm x 150 mm x 35 mm (Without floor mat) |
|---|---|
| Weight | About 1030 g |
| System power supply | 56 V DC, 1.42 A |
| NNI | GPON |
| UNI | 8*GE, the POE1-POE4 ports support PoE/PoE+. |
| Operating temperature | -5°C to +45°C |
| Static powerconsum ption |
|
| Maximum power consumption | 9.5 W (POE port without PD) 78 W (POE port with PD having the maximum power consumption) |
| Maximum PoE output power | Gross power 60W (up to 30W for one GE port) |
| Surge protection specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
| Installation mode | Support indoor desktop installation, wall mounting, or network box installation. |
Interface Parameters
| GPON |
|
|---|---|
| GE |
|
Product Functions & Features – Huawei P613E ONT
| Automatic Service Provisioning |
|
|---|---|
| Smart O&M |
|
| Multicast |
|
| Layer 3 features |
|
| Security |
|
| QoS |
|
| Layer 2 Management |
|
| MTU & Jumbo Frame |
|
| Common O&M |
|
OptiXstar V271-20 is This product FTTR
This device supports advanced FTTH solutions based on GPON technology. Learn more about Optical Network Terminals.
* Specifications are based on the Huawei P613E datasheet. Actual performance may vary depending on network conditions. Designed to support GPON fiber optic networks, providing high-speed data transmission, stable connectivity, and reliable performance for FTTH broadband and fiber access solutions.
Additional information
| NNI | GPON |
|---|---|
| UNI | 8*GE, the POE1-POE4 ports support PoE/PoE+. |
| Dimensions (H x W x D) | 220mm x 150mm x 35mm(Without floor mat) |
| Weight | < 1030 g |
| Optical connector | NNI: SC/UPC |
| System power supply | 56V DC,1.42A |
| Power adapter input | 100 V to 240 V AC, 50/60 Hz |
