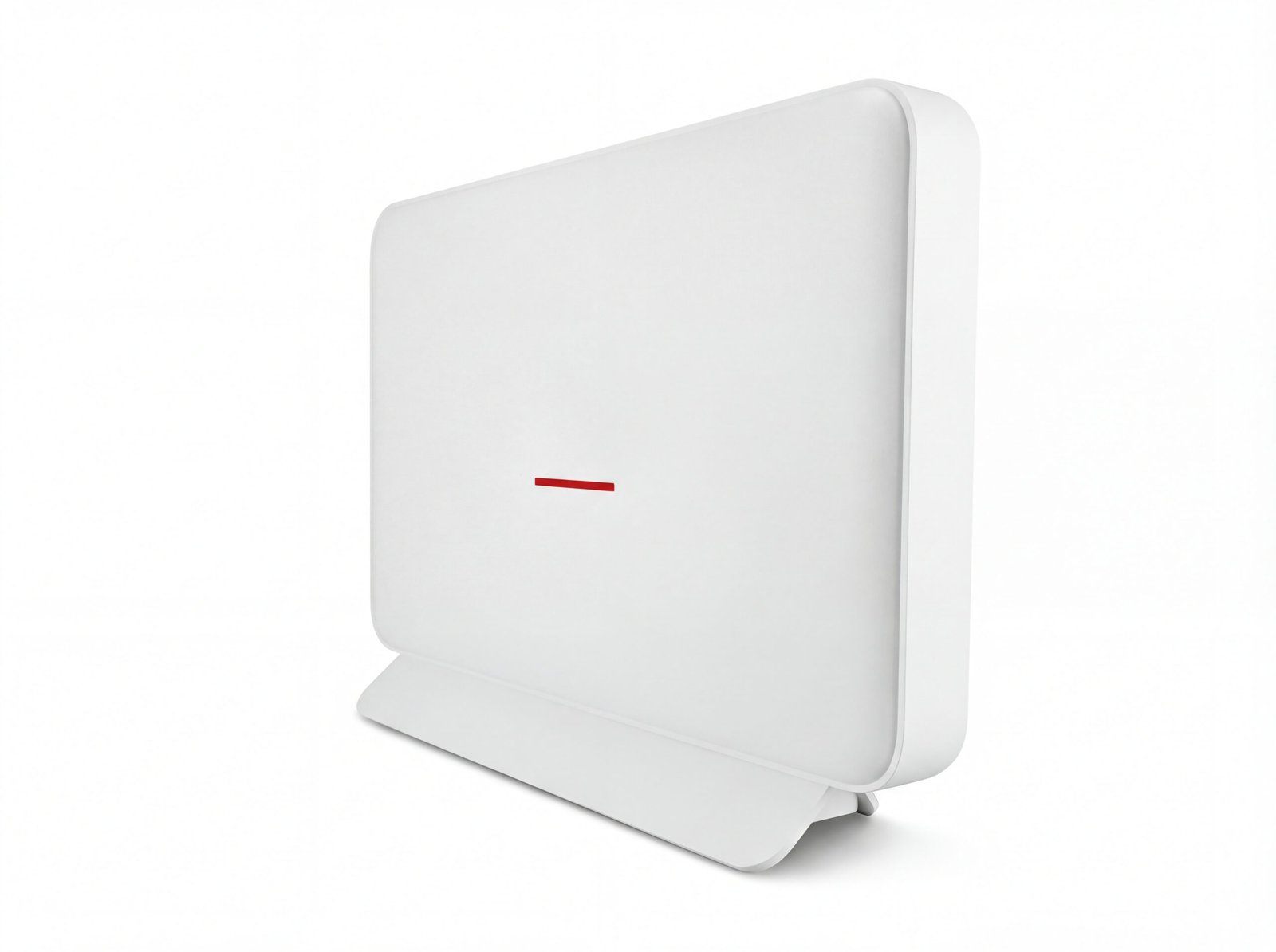

OptiXstar V176 20 Front side

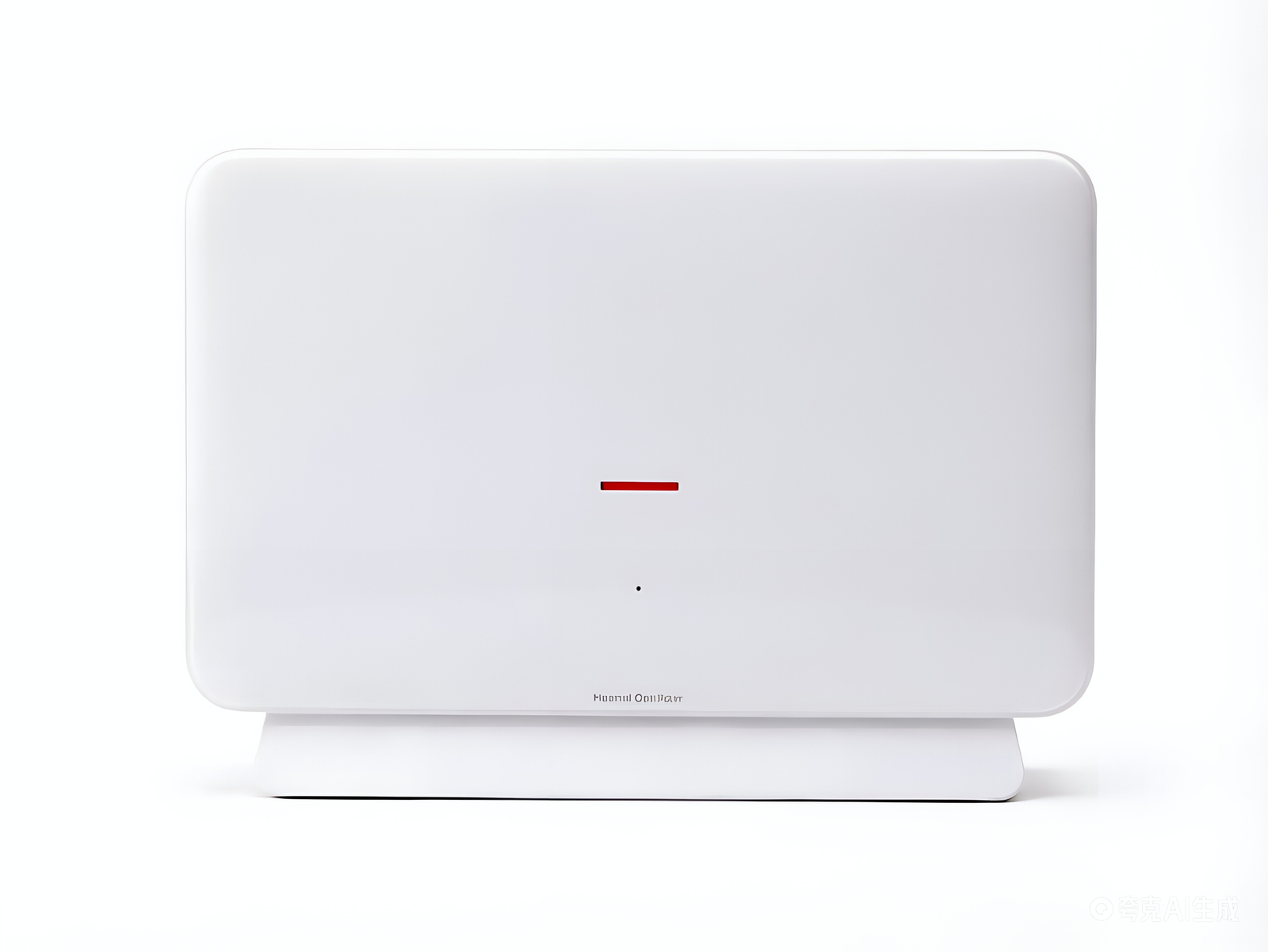

Huawei V176-20 ONT XG-PON with WIFI 6 front view
OptiXstar V176 20 Front side 5

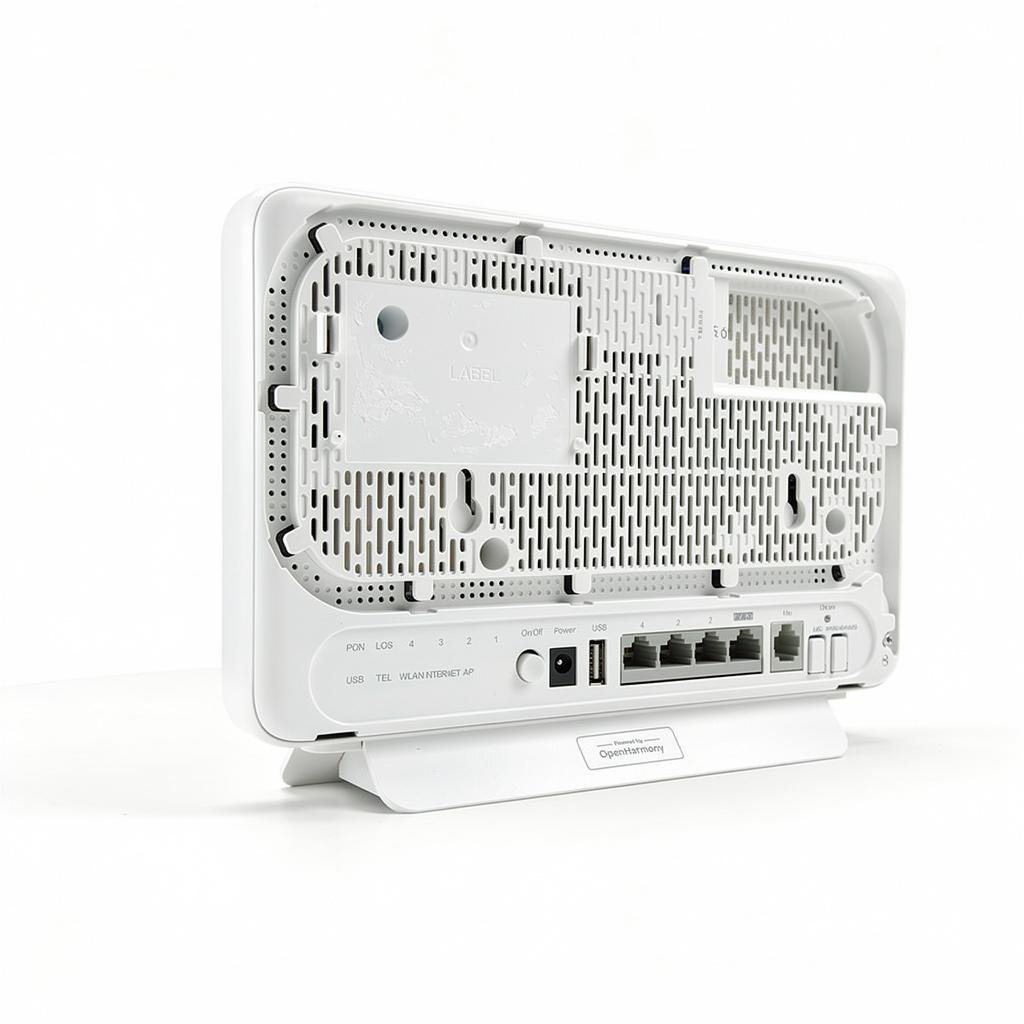

OptiXstar V176 20 back side 1

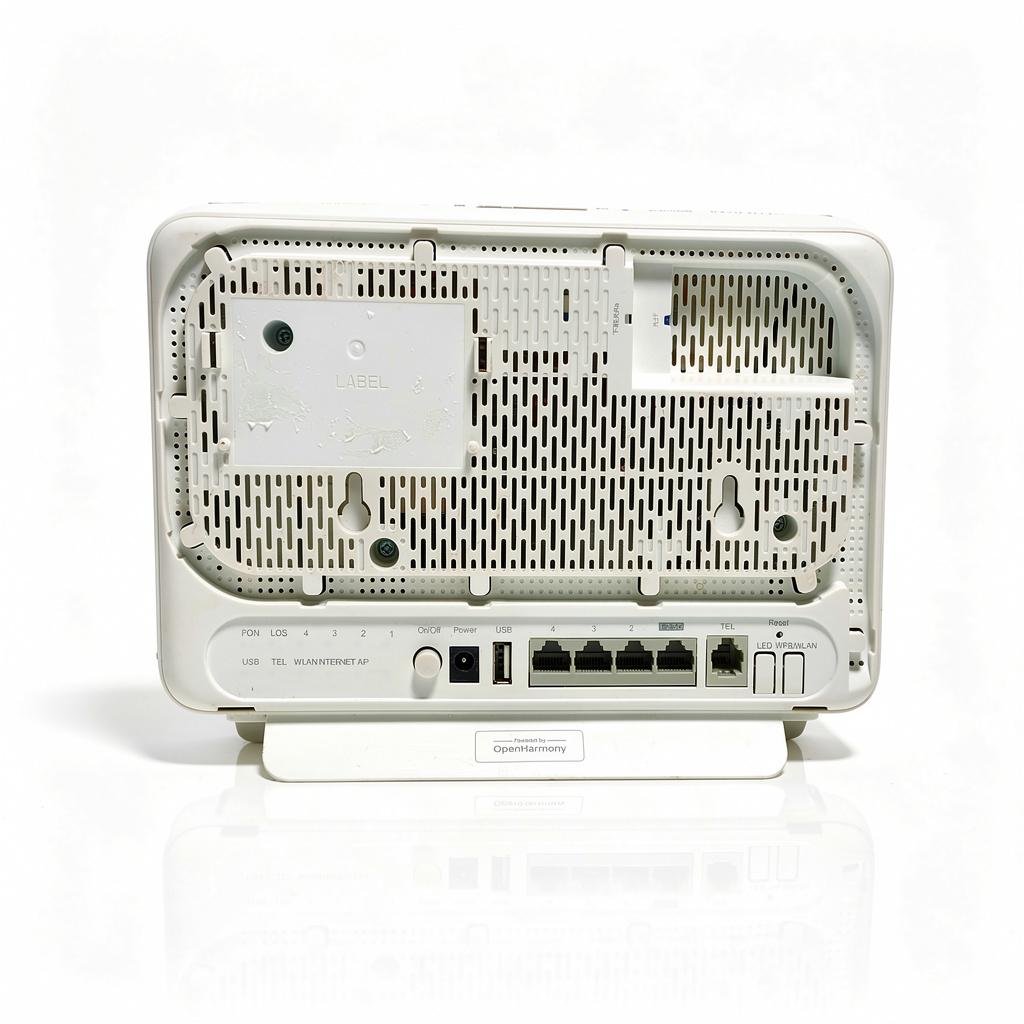

OptiXstar V176 20 back side 2

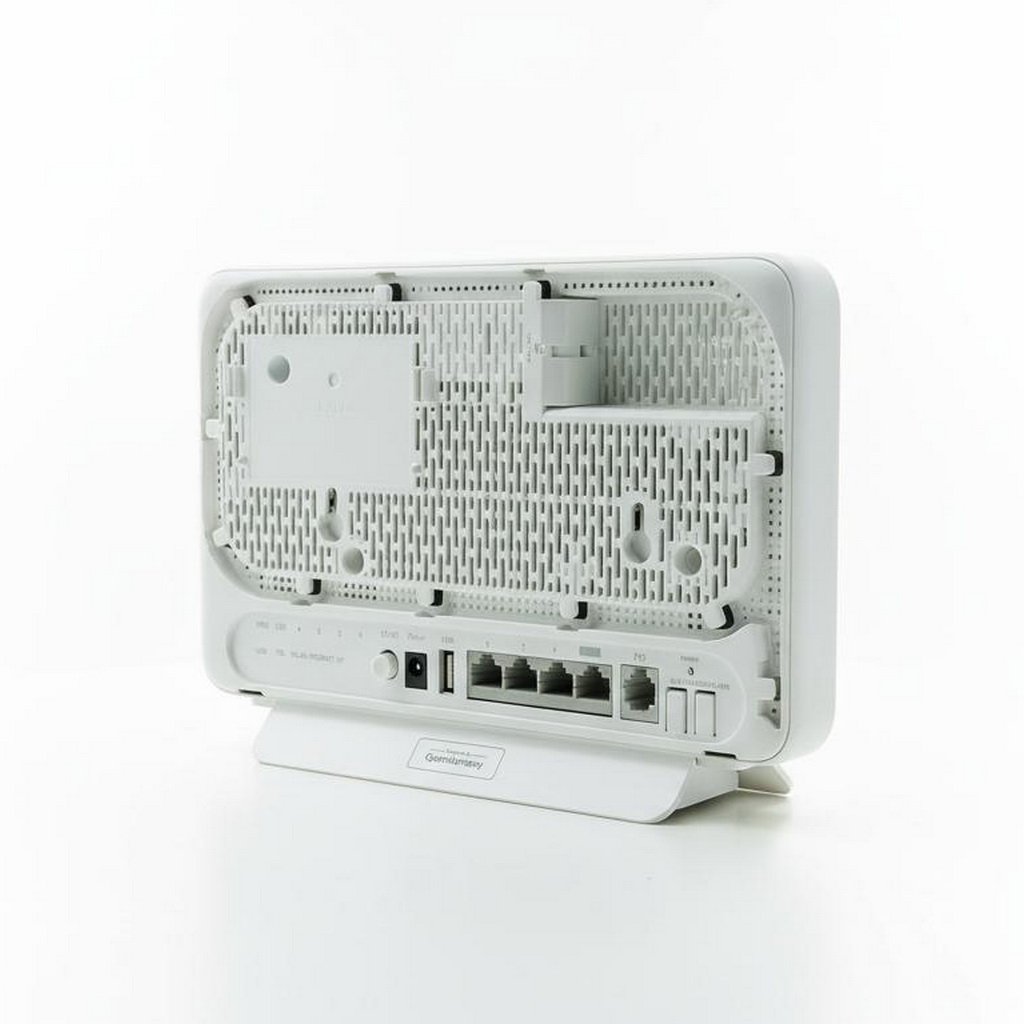

OptiXstar V176 20 back side 3

Huawei V176-20

Price range: $40.00 through $42.00

Huawei V176-20 XGPON/10G-EPON  ONT 1×2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11AX 2.4GHz&5GHz Wi-Fi 6

✅ Includes a 12 Months warranty.
Add to wishlist
SKU: 2150085649 Categories: , , Tags: , , , Brand:

Description

Huawei V176-20 ONT is a high-performance optical network terminal designed for FTTH applications. It supports XGPON/10G-EPON adaptive technology and integrates Wi-Fi 6 for fast, stable, and wide-area wireless connectivity.The device features 1×2.5GE+3× Gigabit Ethernet ports, 1× POTS port for voice services, and 1× USB 2.0 port. With dual-band Wi-Fi 6 (2.4GHz & 5GHz) and 2×2 MIMO, it ensures strong signal coverage, low latency, and efficient performance.Ideal for residential and small business use, the Huawei V176-20 ONT delivers reliable high-speed internet for streaming, gaming, and smart home networks.

Device Parameters – Huawei V176-20 ONT

Dimensions (H x W x D)157 mm x 250 mm x 30 mm (excluding the base)
Weight (without power adapter)About 600 g (excluding the base)
System power supply12 V DC, 2 A
Maximum power consumption24 W
Installation modeVertically placed on a desk
NNIXGPON / 10G-EPON auto-adaptive
Memory256 MB Flash, 512 MB RAM
UNI1×2.5GE+3xGE+1xPOTS+1xUSB2.0+2.4GHz&5GHz Wi-Fi+1xoptical port
Operating temperature0°C ~ +40°C
Optical connector
  • NNI: SC/UPC
  • UNI: SC/UPC
Operating humidity5%–95% RH, non-condensing
IndicatorIndicators on front panel
Indicators on rear panel:ON/LOS/4-GE/3-GE/2-GE/1-2.5GE/USB/TEL/WLAN/WPS/FTTR
Power adapter input100 V to 240 V AC, 50/60 Hz

Interface Parameters

GPON / XG-PON
  • XGPON: Class N1/N2a/E1 | 10G-EPON: Class PRX30
  • Receiver sensitivity: XGPON: -27 dBm ; 10G-EPON: -28.5 dBm
  • Overload optical power: XGPON: -8 dBm ; 10G-EPON: -9 dBm
  • Wavelengths: XGPON (US 1260 nm, DS 1577 nm) ; 10G-EPON (US 1310 nm, DS 1577 nm)
  • Wavelength blocking filter (WBF)
  • Flexible mapping between GEM ports and T-CONTs
  • SN/Password/SN+Password/Bi-directional authentication based on OMCI (XG-PON)
  • MAC/Key/LOID (Asymmetric 10G-EPON)
  • Forward error correction (FEC) in upstream & downstream
  • SR and NSR DBA
  • Upstream/downstream rate: XGPON (2.488 Gbit/s upstream, 9.953 Gbit/s downstream)
    10G-EPON (1.25 Gbit/s upstream, 10.3125 Gbit/s downstream)
Wi-Fi (IEEE 802.11ax/ac/n/g/b/a)
  • IEEE 802.11 b/g/n/ax (2.4GHz)
  • IEEE 802.11 a/n/ac/ax (5GHz)
  • 2×2 MIMO (2.4GHz & 5GHz)
  • WMM (Wi-Fi Multi Media)
  • Multiple SSIDs
  • WPS support
  • Air interface rate: 574 Mbps (2.4GHz), 2402 Mbps (5GHz)
Ethernet port
  • Ethernet port-based VLAN tags and tag removal
  • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
  • QinQ VLAN
  • Limitation on the number of learned MAC addresses
  • MAC address learning
  • GE port  supporting 10/100/1000 Mbit/s auto-adaptation
  • 2.5GE port supports 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s,and 2500 Mbit/s auto-sensing
POTS port
  • Maximum REN: 4
  • G.711A/μ, G.729a/b, and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)
Downstream optical port
  • P2MP optical port
  • Theoretic upstream rate: about 1.25 Gbit/s; downstream: about 2.5 Gbit/s
  • Plug-and-play of the Slave FTTR
USB port
  • USB 2.0

Product Functions & Features – Huawei V176-20 ONT

Smart interconnection
  • Smart Wi-Fi coverage
  • SIP/H.248 auto-negotiation
  • Any port any service
  • Parental control
Smart O&M
  • IPTV video quality diagnosis
  • Rogue ONT detection and isolation from the OLT
  • WLAN simulation
  • PPPoE/DHCP simulation testing
Multicast
  • IGMP v2/v3 snooping
  • IGMP v2/v3 proxy
  • MLD v1/v2 snooping
Layer 3 features
  • PPPoE/Static IP/DHCP
  • NAT/NAPT
  • Port forwarding
  • ALG, UPnP
  • DDNS/DNS server/DNS client
  • IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI
  • Static/Default routes
  • Multiple services on one WAN port
Security
  • SPI firewall
  • Anti-DOS attack
  • Filtering based on MAC/IP/URL addresses
Common O&M
  • OMCI/Web UI/TR069
  • Variable-length OMCI messages
  • Dual-system software backup and rollback
QoS
  • Ethernet port rate limitation
  • 802.1p priority
  • SP/WRR/SP+WRR
  • Broadcast packet rate limitation
Power saving
  • Indicator power saving
  • TWT energy saving
Home network management
  • Fiber to the room, implementing all-optical home networking
  • C-WAN architecture, centrally controlling and coordinating network-wide Wi-Fi resources by the Master FTTR
  • Home Wi-Fi slicing and ONT cross-network acceleration assurance
  • Intelligent Wi-Fi optimization for a home network
  • Seamless Wi-Fi roaming within a home network (SRCN roaming technology, compatible with 802.11k/802.11v)
NCE cloud management
  • Visualized home network management
  • Remote management and maintenance
  • Network management on a mobile app
  • Installation guide, visible home network topology
  • Wi-Fi settings, timed Wi-Fi on/off
  • Blacklist and parental control
  • One‑click network optimization, one‑click diagnosis and recovery

Huaweir V173-50 combo Wifi6 7Db

Huaweir V173 50 combo

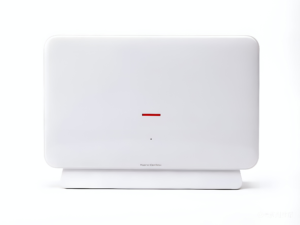

huawei-V176-20 XG-PON with WIFI 6 front view
OptiXstar V152 Front side

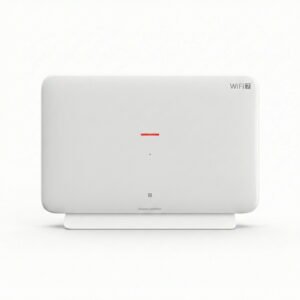

OptiXstar V271-20 is This product PRO

This device supports advanced FTTH solutions based on GPON technology. Learn more about Optical Network Terminals.

Additional information

NNI

XG-PON, 10G-EPON

UNI

1×2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11AX 2.4GHz&5GHz Wi-Fi 6

Dimensions (H x W x D)

157 mm x 250 mm x 30 mm (excluding the base)

Weight（Without packaging box

About 600 g (excluding the base)

Optical connector

NNI: SC UNI: SC

System power supply

12 V DC, 1.5 A

Power adapter input

100 V to 240 V AC, 50/60 Hz

Wi-Fi

IEEE 802.11 a/n/ac/ax (5GHz)
Air interface rate: 574 Mbps (2.4GHz), 2402 Mbps (5GHz)
