Huawei HN8255Ws

Sale!

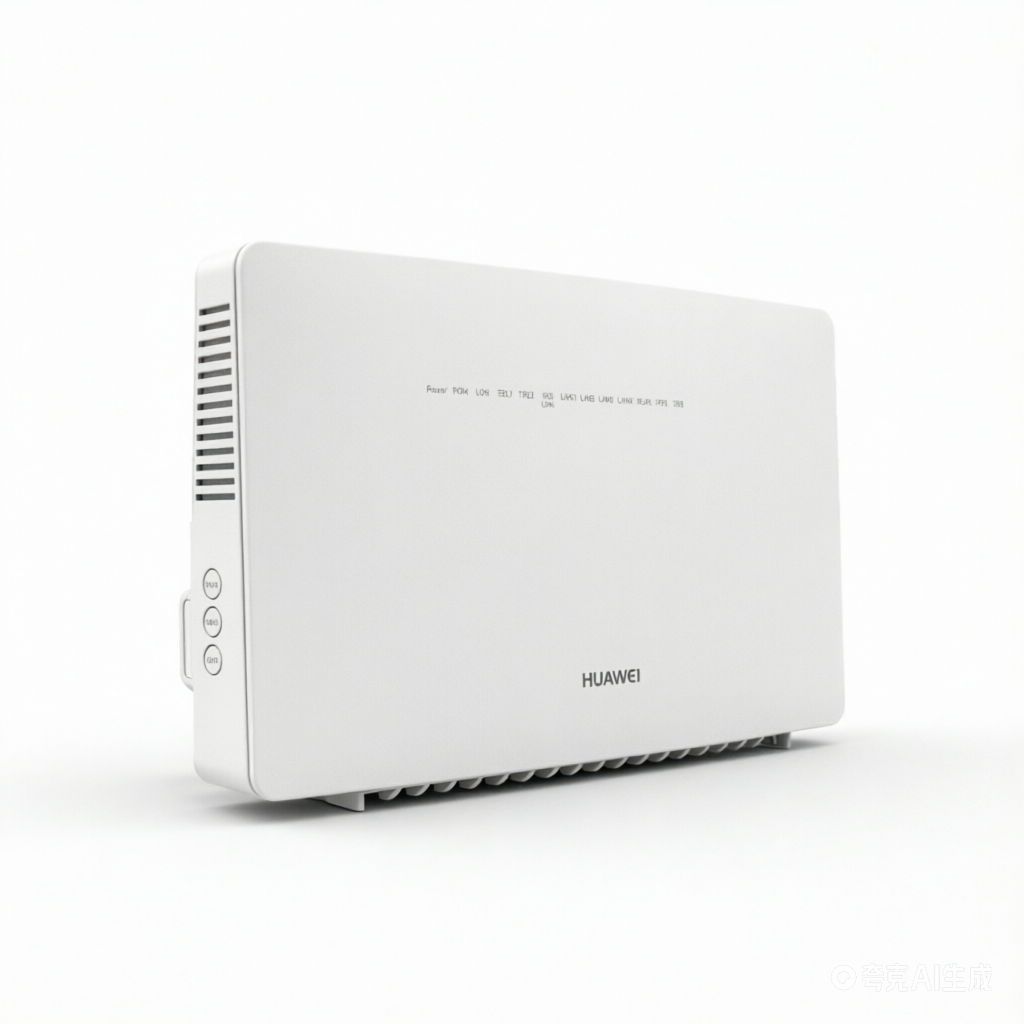

huawei HN8255Ws front view
huawei HN8255Ws side design

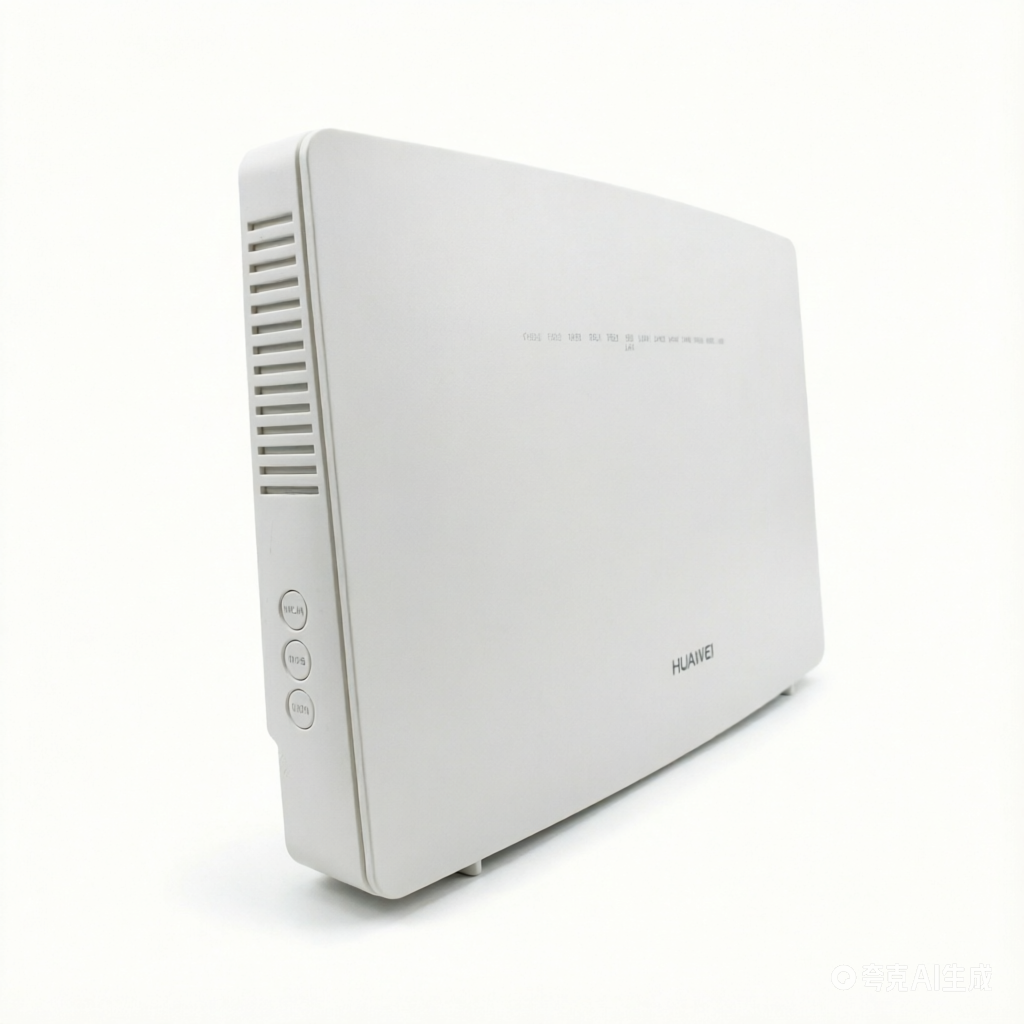

huawei HN8255Ws slim side profile

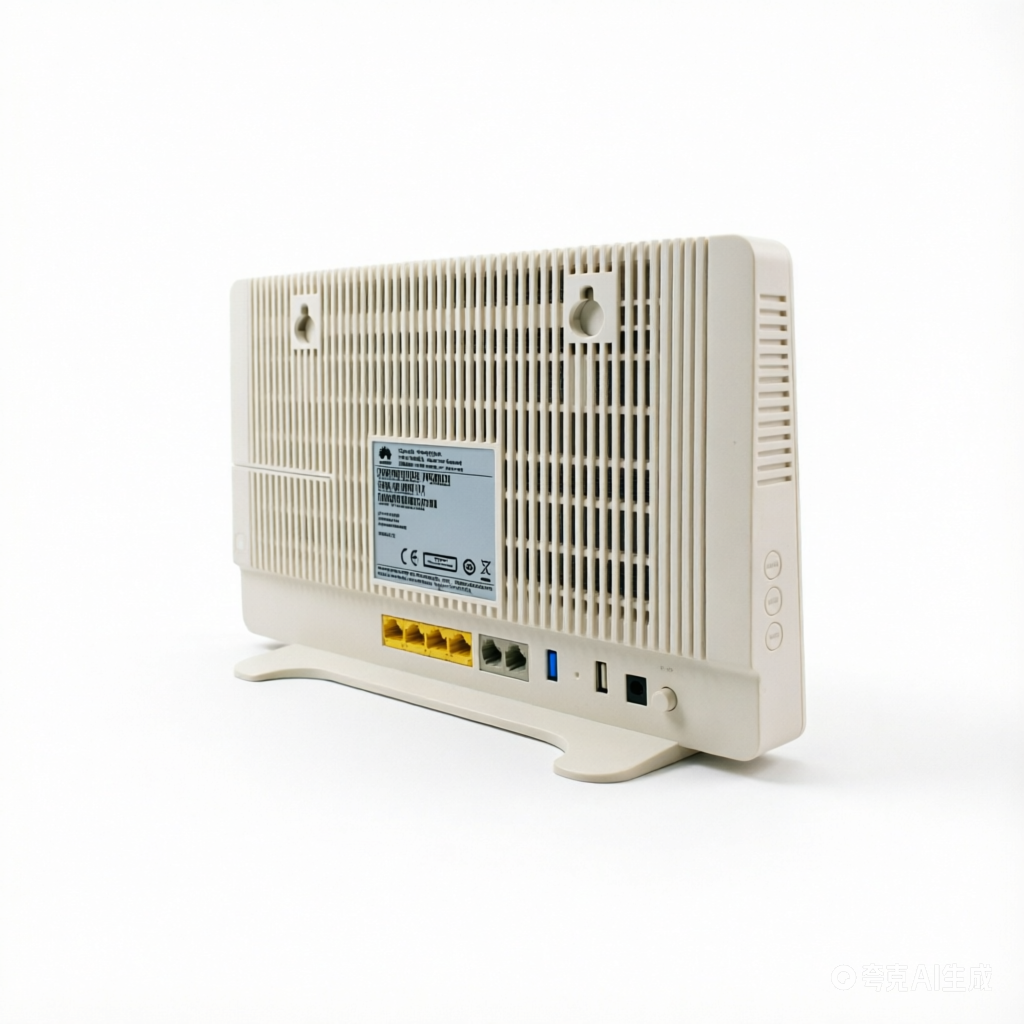

huawei HN8255Ws rear view

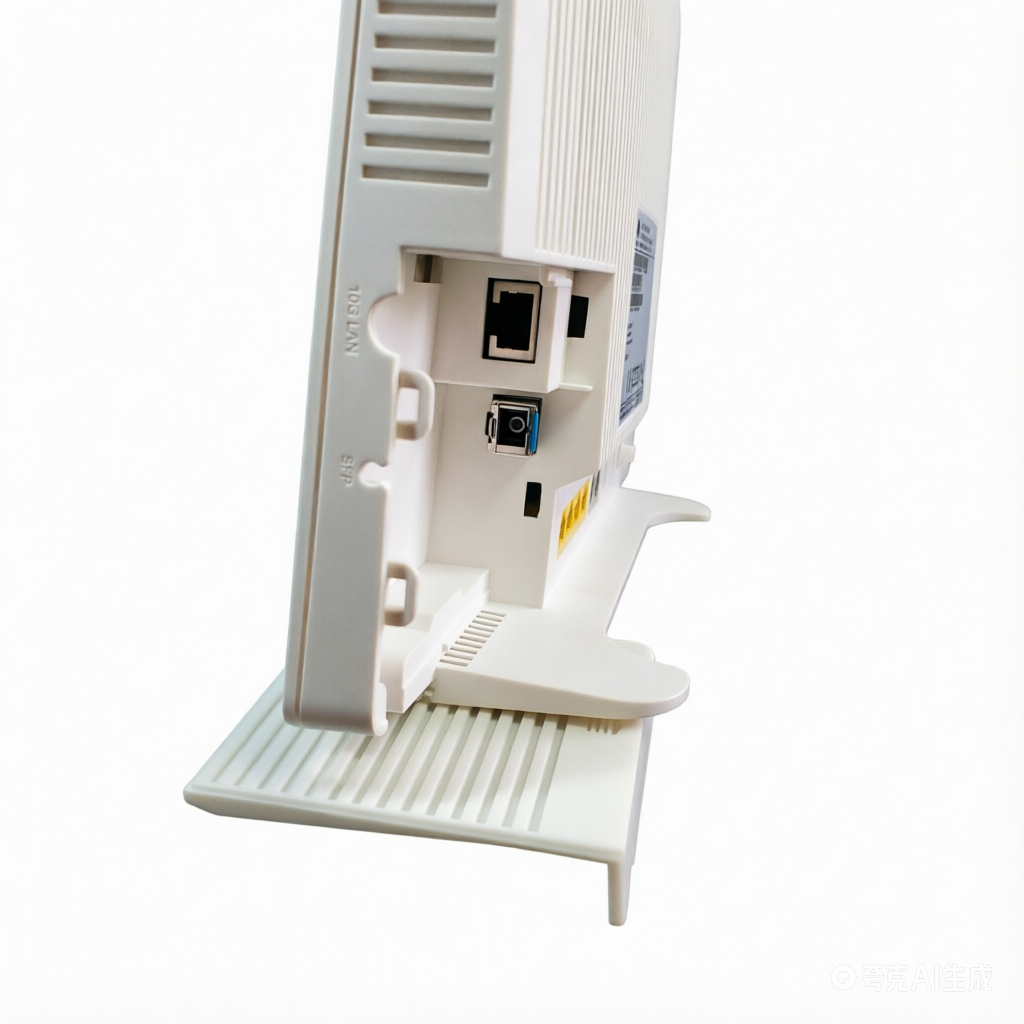

huawei HN8255Ws rear ports

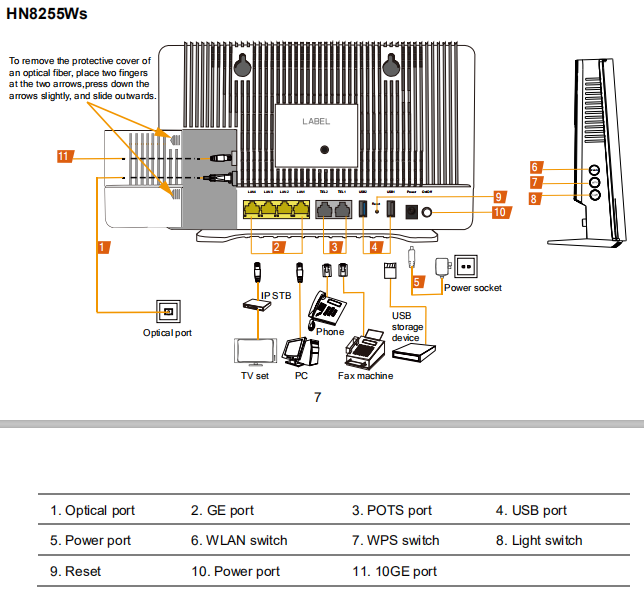

huawei HN8255Ws rear panel ports

Huawei HN8255Ws

Price range: $420.00 through $468.00

Huawei HN8255Ws | XGS-PON (SFP+ Optical Module) | 4*GE + 1*10GE + 2USB+ 2.4G & 5G Wi-Fi 5 with EU power adapter&English version.

✅ Includes a 12 Months warranty.
Add to wishlist
SKU: 2150085101 Categories: , , , Tags: , , Brand:

Description

⚡ 10G PON Flagship ONT | Wi-Fi 5 4×4 MU-MIMO

Huawei HN8255Ws is a premium optical network terminal designed for ultra-broadband FTTH deployments. With XGS-PON technology, it delivers symmetric multi-gigabit bandwidth to power 8K video, cloud gaming, and high-density smart home environments. Powered by dual-band Wi-Fi 5 (802.11ac Wave2): the 2.4GHz radio features 3×3 MIMO with up to 450 Mbps, while the 5GHz radio utilizes 4×4 MU-MIMO for up to 1733 Mbps, ensuring seamless coverage and superior multi-device efficiency. The ONT is equipped with 4 Gigabit Ethernet ports, 1 10GE port, 2 POTS voice interfaces, 2 USB 2.0 ports, and an integrated downstream optical interface for FTTH (Fiber to the Home) expansion. As the home network control center, it orchestrates distributed APs, delivers band steering, beamforming, and smooth roaming for an unparalleled whole-home Wi-Fi experience.It with EU Standard Adapter，English Documents.

Device Parameters – Huawei HN8255Ws

Dimensions (H x W x D)198 mm x 305 mm x 82.5 mm (excluding base)
Weight (without power adapter)< 1200 g
System power supply12 V DC, 4.0 A
Maximum power consumption≤ 46.5 W
Installation modeDesktop
NNI (Network Node Interface)XGS-PON, SC/UPC (SFP+ Optical Module)
Memory512 MB RAM, 256 MB Flash
UNI (User Network Interface)2 x POTS + 4 x GE + 1 x 10GE + 2.4G & 5G Wi-Fi + 2 x USB
Operating temperature0°C ~ +40°C
Operating humidity5% – 95% RH, non-condensing
Indicator
  • POWER/PON/LOS/LAN/10G LAN/4*GE LAN/2.4G Wi-Fi/5G Wi-Fi/WPS/USB

Interface Specifications – Huawei HN8255Ws

XGS-PON
  • Class N1/N2
  • Receiver sensitivity: -28 dBm
  • Wavelengths: US 1260-1280 nm, DS 1575-1580 nm
  • Wavelength blocking filter (WBF)
  • Flexible mapping between GEM Port and T-CONT
  • SN/Password/SN+Password/Bi-directional authentication based on OMCI
  • Upstream and downstream FEC
  • SR-DBA and NSR-DBA
  • 10 Gbit/s upstream, 10 Gbit/s downstream (symmetrical)
Wi-Fi (802.11 b/g/n/ac)
  • 2.4GHz: IEEE 802.11 b/g/n, 3×3 MIMO, up to 450 Mbit/s
  • 5GHz: IEEE 802.11 a/n/ac, 4×4 MU-MIMO, up to 1733 Mbit/s
  • Concurrent dual-band, aggregate theoretical rate 2183 Mbit/s
  • Antenna gain: 2 dBi (built-in high-gain antennas)
  • EIRP (CE standard): 2.4G ≤ 100 mW, 5G (5.15~5.35GHz) ≤ 200 mW,
  • 5.47~5.725GHz ≤ 1000 mW
  • WMM (Wi-Fi Multi Media)
  • Multiple SSIDs
  • WPS support
  • 2.4G/5G concurrent operation
Ethernet Ports
  • 4 x GE + 1 x 10GE (10/100/1000/10000 auto-negotiation)
  • Ethernet port-based VLAN tags and tag removal
  • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
  • QinQ VLAN
  • Limitation on the number of learned MAC addresses
  • MAC address learning
POTS (Voice) Port
  • Maximum REN: 4
  • G.711A/μ, G.729a/b, and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)
USB Port
  • 2 x USB 2.0 (storage sharing, printer services)

Product Functions & Features – Huawei HN8255Ws

Home Network Management
  • Home network control center
  • Configuration synchronization to distributed plug-and-play APs
  • Whole-home Wi-Fi signal optimization & auto-tuning
  • Seamless Wi-Fi roaming (assisted by 802.11k/v)
  • Band Steering & Beamforming
  • Wi-Fi video QoS enhancement for ultra-HD streaming
Multicast
  • IGMP v2/v3 Proxy & Snooping
  • MLD v1/v2 Snooping
  • Multicast services over Wi-Fi (IPTV efficient delivery)
Smart Interconnection
  • Smart Wi-Fi coverage & seamless roaming
  • SIP / H.248 voice protocol auto-negotiation
  • Any Port Any Service flexible service binding
  • Parental control & access time management
Smart O&M
  • IPTV video quality diagnosis
  • Rogue ONT detection and isolation (with OLT)
  • WLAN simulation & PPPoE/DHCP simulation testing
  • Dual-system software backup & rollback
Layer 3 Features
  • PPPoE / Static IP / DHCP
  • NAT/NAPT, port forwarding, ALG, UPnP
  • DDNS / DNS proxy
  • IPv6/IPv4 dual stack, DS-Lite, IPv6 SPI
  • Static/Default routes, multiple services on one WAN port
Security & Firewall
  • SPI stateful packet inspection firewall
  • Anti-DoS attack protection
  • MAC / IP / URL filtering
  • WPA/WPA2/WPA3 wireless encryption
QoS
  • Ethernet port rate limitation
  • 802.1p priority marking
  • SP / WRR / SP+WRR queue scheduling
  • Broadcast packet rate limiting
Power Saving
  • LED power saving mode
  • Scheduled Wi-Fi on/off
  • COC V5 energy efficiency compliance
Management Protocols
  • OMCI / TR-069 / Web UI
  • Variable-length OMCI messages
  • Dual-image software backup for high reliability
huawei-V271E XG-PON with WIFI 7 front view
huawei-V271E XG-PON with WIFI 7

OptiXstar V152 Front side

OptiXstar V271-20 is This product FTTR

This device supports advanced FTTH solutions based on GPON technology. Learn more about Optical Network Terminals.

* Specifications are based on the Huawei HN8255Ws datasheet. Actual performance may vary depending on network conditions. Supports XGS-PON symmetrical 10G, providing high-speed data transmission, stable connectivity, and reliable performance for FTTH broadband and fiber access solutions.

Additional information

NNI

GPON, XGPON, 10GEPON, XGS-PON

UNI

4*GE + 1*10GE + 2USB+ 2.4G & 5G Wi-Fi 5

Dimensions (H x W x D)

198 mm x 305 mm x 82.5 mm(Without the base)

Weight

< 1200 g

Optical connector

NNI: SC （SFP+ Optical Module）

System power supply

12 V DC, 4.0 A

Power adapter input

100 V to 240 V AC, 50/60 Hz
