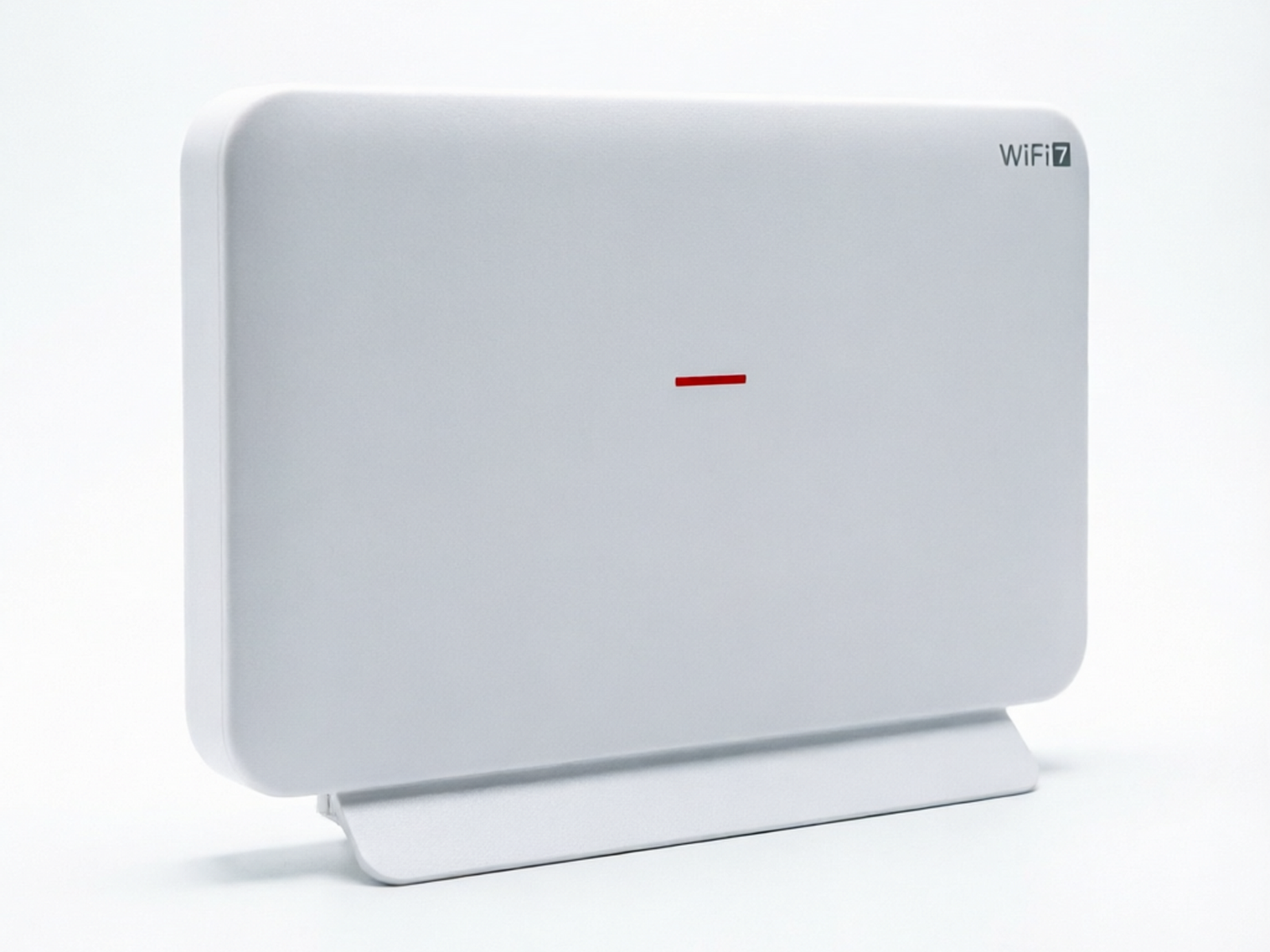

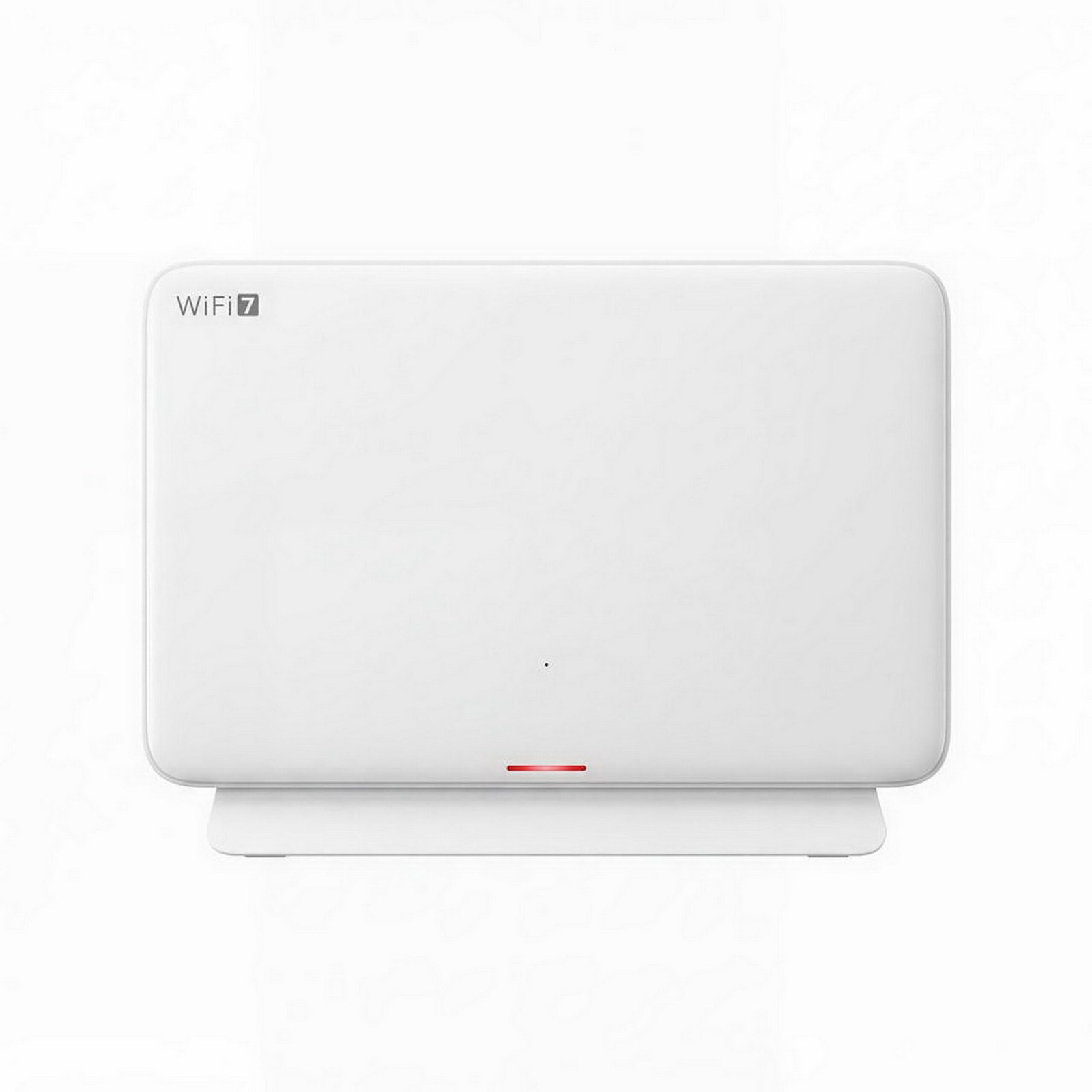

Huawei V271-20
Price range: $53.00 through $60.00
Huawei V271-20 XGPON/10G-EPON ONT 1×2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11AX 2.4GHz&5GHz Wi-Fi 7 It is equipped with an EU standard adapter&English version.
Description
Huawei V271-20.
Specifically, It includes various interfaces:1×2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11BE 2.4GHz&5GHz Wi-Fi 7.Consequently, by adopting XGPON/10G-EPON auto-adaptive and Wi-Fi 7 technologies,It provides high-speed Wi-Fi over a large area.It is equipped with an EU standard adapter&English version.
Equipped with 1×2.5GE and 3× Gigabit Ethernet ports, along with a POTS interface for voice services and a USB 2.0 port for extended functionality, the V271-20 ensures flexible connectivity for both residential and small business environments. Its integrated dual-band Wi-Fi 7 (2.4GHz & 5GHz) with 2×2 MIMO delivers enhanced coverage, lower latency, and superior wireless efficiency.
Designed for high-performance applications, this ONT is ideal for 4K/8K streaming, cloud gaming, remote work, and smart home ecosystems. Compared with traditional GPON devices, the Huawei V271-20 provides significantly higher throughput and improved network stability, making it a future-proof solution for ISPs and enterprise users.
Device Parameters – Huawei V271-20
| Dimensions (H x W x D) | 148 mm x 240 mm x 30 mm (excluding the base) |
|---|---|
| Weight (without power adapter) | About 570 g (excluding the base) |
| System power supply | 12 V DC, 2 A |
| Maximum power consumption | 24 W |
| Installation mode | Vertically placed on a desk |
| NNI | XGPON / 10G-EPON auto-adaptive |
| Memory | 256 MB Flash, 1 GB RAM |
| UNI | 1×2.5GE+3xGE+1xPOTS+1xUSB2.0+2.4GHz&5GHz Wi-Fi+1xoptical port |
| Operating temperature | 0°C ~ +40°C |
| Optical connector |
|
| Operating humidity | 5%–95% RH, non-condensing |

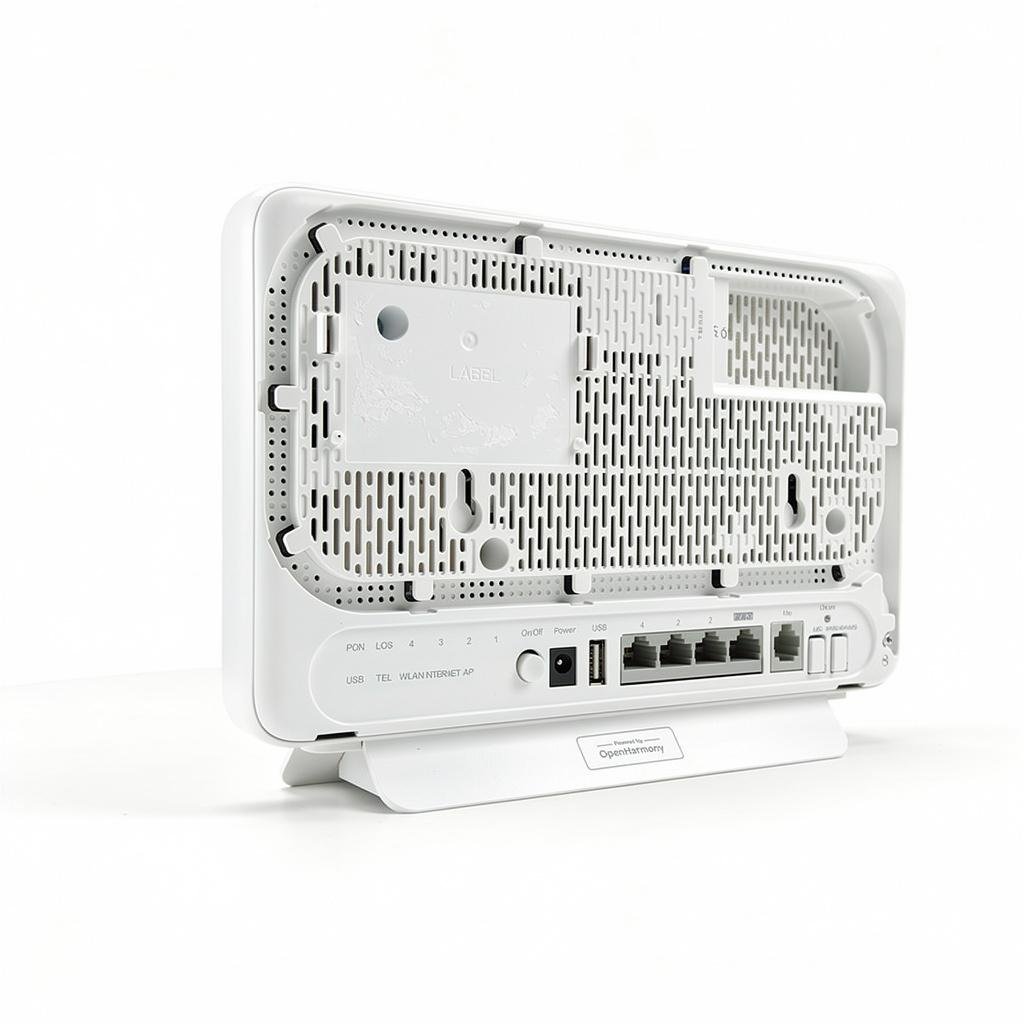

| Indicator | Indicators on front panel Indicators on rear panel: ON/LOS/4-GE/3-GE/2-GE/1-2.5GE/USB/TEL/WLAN/WPS/FTTR |
| Power adapter input | 100 V to 240 V AC, 50/60 Hz |
Interface Parameters – Huawei V271-20
| XGPON / 10G-EPON |
|
|---|---|
| Wi-Fi (IEEE 802.11 a/n/ac/ax/be ) |
|
| Ethernet port |
|
| POTS port |
|
| Downstream optical port |
|
| USB port |
|
Product Functions & Features – Huawei V271-20
| Smart interconnection |
|
|---|---|
| Smart O&M |
|
| Multicast |
|
| Layer 3 features |
|
| Security |
|
| Common O&M |
|
| QoS |
|
| Power saving |
|
| Home network management |
|
| NCE cloud management |
|
Huaweir V173-50 combo Wifi6 7Db
This device supports advanced FTTH solutions based on GPON technology. Learn more about Optical Network Terminals.
* Specifications are based on the Huawei V271-20 datasheet. Actual performance may vary depending on network conditions. Supports XG-PON fiber optic networks, providing high-speed data transmission, stable connectivity, and reliable performance for FTTH broadband and fiber access solutions.
Additional information
| NNI | XG-PON, 10G-EPON |
|---|---|
| UNI | 1×2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11 BE 2.4GHz&5GHz Wi-Fi 7 |
| Dimensions (H x W x D) | 148 mm x 240 mm x 30 mm（excluding the base） |
| Weight（Without packaging box | About 570 g (excluding the base) |
| Optical connector | NNI: SC UNI: SC |
| System power supply | 12 V DC, 1.5 A |
| Power adapter input | 100 V to 240 V AC, 50/60 Hz |
| Wi-Fi | IEEE 802.11 a/n/ac/ax/be (5GHz) |
| Product Condition | Brand new, Remanufactured |
Video
Video
FW Screenshot
FW Screenshot
Related products
Huawei V591E
Huawei V591E | 50G-PON | 1x10GE+3xGE+1xPOTS+1xUSB3.0*+1x Down pon SC（XGS-PON）+2.4G&5G&5G WIFI 7 It is equipped with an EU standard adapter,English Documents. Price range: $900.00 through $950.00Huawei P813E
Huawei P813E | XGS-PON (SFP+ Optical Module) | 8*GE（Both the GE ports support PoE/PoE+.）It is equipped with an EU standard adapter,English Documents. Price range: $320.00 through $350.00Huawei V271E

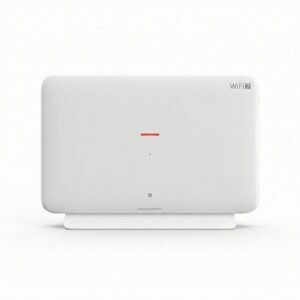

Huawei V271E XG-PON/10G-EPON ONT 1x2.5GE+3xGE+1xPOTS+1xUSB2.0+ 2*2 11AX 2.4GHz&5GHz Wi-Fi 7 It is equipped with an EU standard adapter,English Documents. Price range: $70.00 through $72.00Huawei HN8245Q
